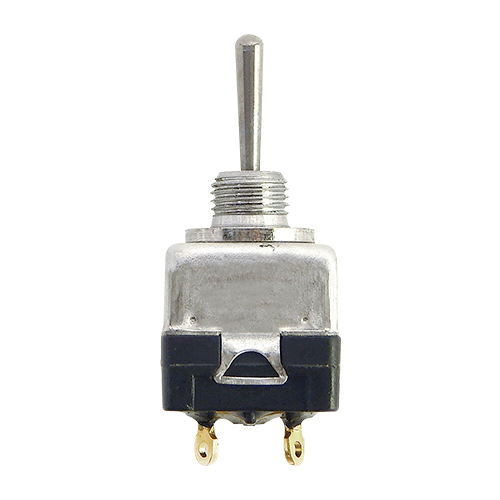

8867 Series Miniature Positive Action Toggle Switch | DPDT, ON-OFF

8867 Series Miniature Positive Action Toggle Switch | DPDT, ON-OFF

EATON

Call For Pricing
Available to order
EDMO # MS24656221
MFR Part # MS24656-221
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 8867K series toggle switches have sealed bushings to protect from dust, moisture, and other contaminates. The miniature switches have a positive make and break action.

Version (EDMO# 8867K7) is a double-pole, double-throw toggle switch. Positions: ON-OFF

Features

  • Threaded panel mount
  • Current rating versatility
  • Non-teasible mechanism for all but center "ON" circuits
  • Dry circuit (logic level loads) to power switching levels
  • Solder lug terminals
  • Wiping action contacts
  • Bushing seal or bonded seal per MIL-DTL-8834
  • MS approved and QPL'd per MIL-DTL-8834
  • Life: 20,000 operations at rated load 40,000 operations mechanical life

Specifications

  • Bushing:
    15/32"" - 32 thread
  • Temperature Range:
    -67°F to +160°F (-55°C to +71°C)
  • Contact current max:
    5A
  • Contact Voltage AC:
    115V nominal
  • Contact Voltage DC:
    28V
  • Contact configuration:
    Double-pole, double-throw (DPDT)
  • Switch operation:
    ON-OFF
  • MS part number:
    MS24656-221

Related Products

Product Codes

  • Mfr Part No
    MS24656-221
