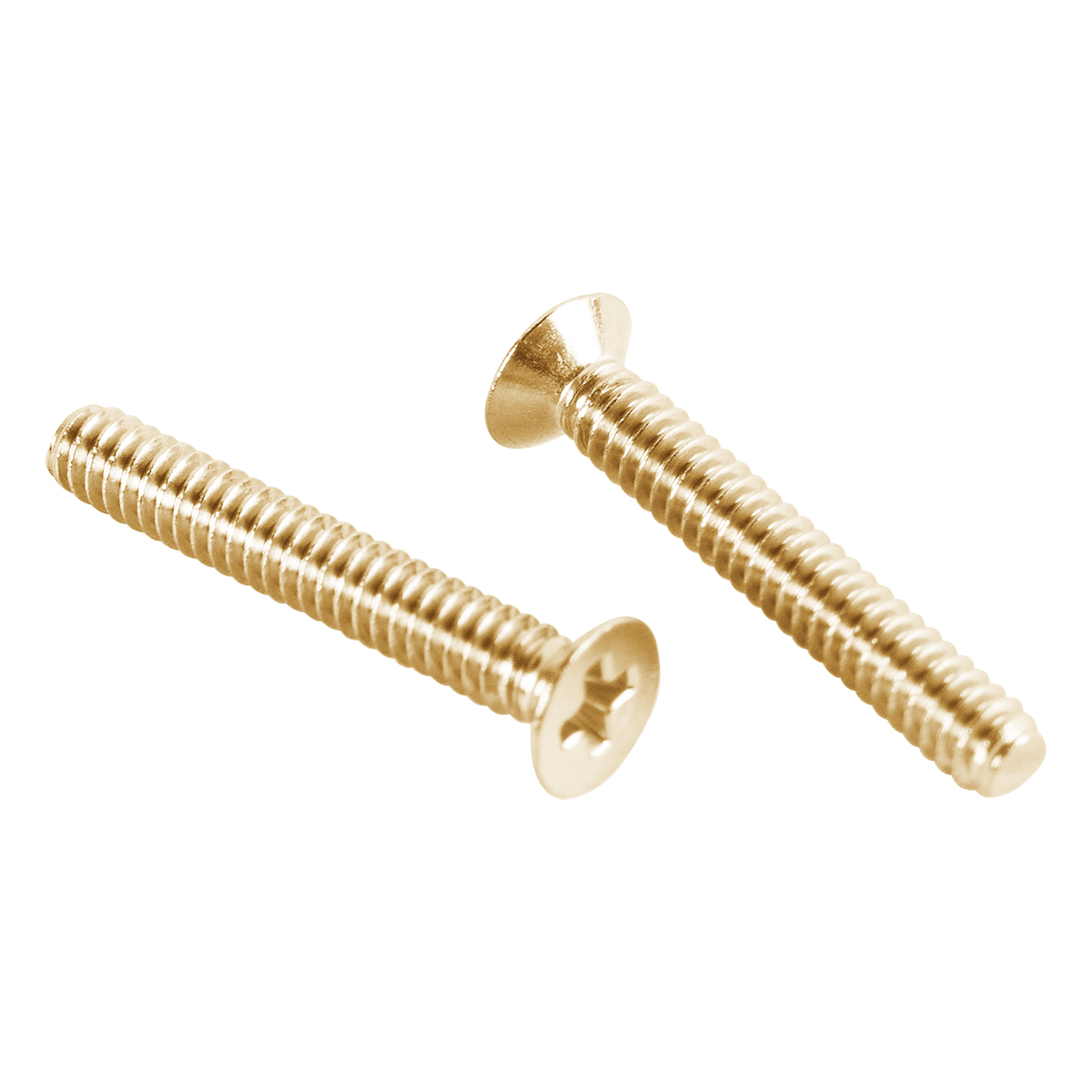

MS24693S8 Phillips Flat Head Countersunk Screw | 3/4 in. Length, 4-40 Threads

Product Description

MS24693S Series countersunk screws feature a 100 degree flat head and are made of cadmium plated carbon steel material.

This Phillips head countersunk screw (EDMO# MS24693S8) has a length of 3/4-inch and a 4-40 thread size.

Specifications

• Thread Class:
  2a
• Thread Direction:
  Right-hand
• Thread Length:
  0.75 in (minimum)
• Fastener Length:
  0.75 in (nominal)
• Head Style:
  Flat countersunk
• Head Diameter:
  0.191 – 0.225 in
• Internal Drive Style:
  Cross recess type 1
• Nominal Thread Diameter:
  0.112 in
• Thread Quantity Per Inch:
  40
• Minimum Tensile Strength:
  60000 lb/sq. in
• Countersink Angle:
  99° – 101.0°
• Screw Material:
  Steel comp 1010
• Screw Surface Treatment:
  Cadmium
• Thread Series Designator:
  UNC

Product Codes

• Mfr Part No
  ms24693s8
• MIL SPEC
  MS24693S8
• ECCN
  EAR99
• MIL SPEC
  MS24693S8
• SCHEDULE B CODE
  7408.29.0000
