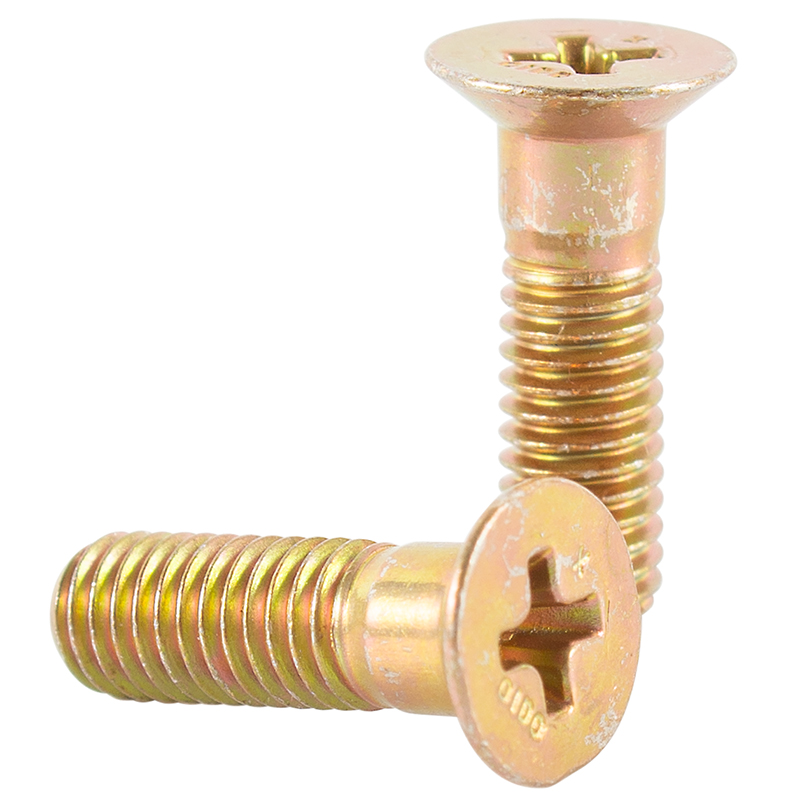

MS24694S52 Phillips Countersunk Screw | 0.687 in. Length, 10-32 Threads

Product Description

MS24694-S Series countersunk screws feature a 100 degree flat head and are made of a cadmium plated steel material that has been heat treated providing additional hardness.

This Phillips head countersunk screw (EDMO# MS24694S52) has a length of 0.687-inch and a 10-32 thread size.

Specifications

• Thread Class:
  3a
• Thread Direction:
  Right-hand
• Thread Length:
  0.421 — 0.499 in
• Fastener Length:
  0.640 — 0.687 in
• Head Style:
  Flat countersunk
• Head Diameter:
  0.327 — 0.385 in
• Internal Drive Style:
  Cross recess type 1
• Nominal Thread Diameter:
  0.190 in
• Thread Quantity Per Inch:
  32
• Minimum Tensile Strength:
  125000 lb/sq. in
• Countersink Angle:
  99° — 101.0°
• Screw Material:
  Steel
• Screw Surface Treatment:
  Cadmium and Chromate
• Thread Series Designator:
  UNC

Product Codes

• Mfr Part No
  MS24694S52
• MIL SPEC
  MS24694S52
• ECCN
  EAR99
• MIL SPEC
  MS24694S52
• SCHEDULE B CODE
  7408.29.0000
