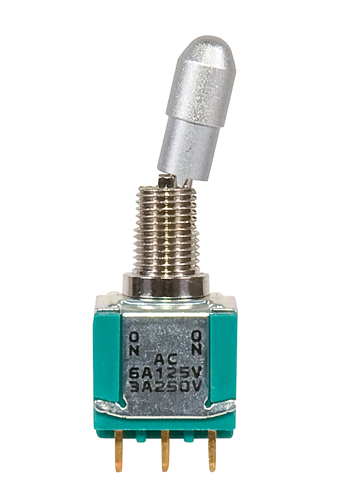

Green Series Toggle Switch | Locking, 3PDT, ON-ON

Green Series Toggle Switch | Locking, 3PDT, ON-ON

TE CONNECTIVITY

Call For Pricing
Available to order
EDMO # MTL-306D
MFR Part # MTL-306D,4-1437559-2
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Green Series Toggle Switches have silver slugs with all contact surfaces gold flashed, this inhibits oxidation and also offers a very low initial contact resistance. The design also includes overmolded terminals which eliminate any voids with epoxy sealed terminals.

Version MTL-306D is a 3-pole, double-throw toggle switch. Positions: ON-ON with 2-position lever lock

Features

  • Wire lug, PC terminals
  • Threaded panel mount
  • Overmolded terminals
  • 10 mOhms maximum Initial contact resistance
  • 1,000 MOhms minimum insulation resistance
  • 1500VRMS at sea level Minimum dielectric strength
  • RoHS Compliant
  • Break-before-make contact timing

Specifications

  • Bushing: 1/4-40 UNS-2A
  • Temperature Range: -4°F to +176°F (-20°C to +80°C)
  • Contact current max: 6A @ 125VAC 3A @ 250VAC 4A @ 28VDC
  • Contact Voltage AC: 115V nominal
  • Contact Voltage DC: 28V
  • Contact configuration: 3-pole, double-throw (3PDT)
  • Switch operation: ON-ON

Related Products

Product Codes

  • Mfr Part No
    MTL-306D,4-1437559-2
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.50.9065
