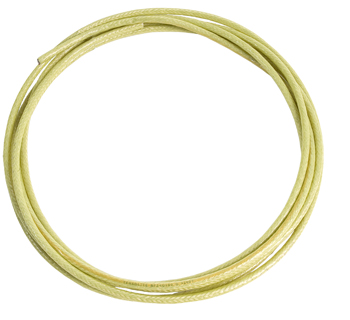

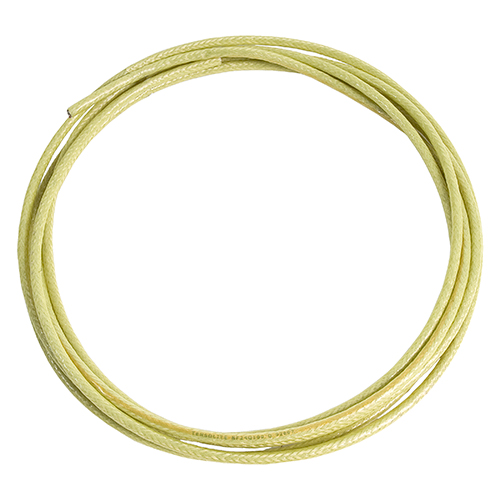

100 Base-T Star Quad Data Bus Cable

STAR QUAD DATA BUS CABLE

EDMO

EDMO#: NF24Q100

MFR#: NF24Q100

Description

NETflight® Ethernet cables in single pair, dual pair and quadrax configurations are widely used throughout the aerospace industry and provide superior electrical and mechanical performance. Typical applications include: Ethernet backbone, avionics, high-definition video, cabin management systems, in-flight entertainment and databus applications.

Features

  • Exceptional electrical and mechanical performance
  • Advanced technologies such as Bonded-Pairs and an innovative X-Web reduce cross talk and ensure installable performance
  • Meets FAR 25.853 and Boeing/Airbus Smoke and Toxicity

Specifications

Weight:
25 lb / 1,000 ft

Cable Type / Protocol:
Ethernet CAT 5E

Number of Conductors:
4

Wire Gauge:
24

Temperature:
-55°C – 150°C

Impedance:
100Ω

Bend Radius:
1.63 in

Product Codes

Mfr Part No :

NF24Q100

ECCN :

EAR99

SCHEDULE B CODE :

8544.19.0000

Notice: EDMO Distributors, Inc. has made every effort to verify the accuracy of the codes, classifications, and part approvals listed in accordance with the Department of Commerce, U.S. Census Bureau, Bureau of Industry and Security, U.S. Department of Defense and Federal Aviation Administration. EDMO Distributors, Inc. does not assume responsibility for errors or omissions. This listing is subject to change without notice.

Warning to Exporters: EDMO Distributors, Inc. does not assume responsibility for errors with any of the Schedule B Commodity Codes or Export Control Classification Numbers in this listing. It is the Exporter's responsibility to research and supply the correct codes and classifications for the product to be exported. Some products may require an Export License in order to be exported.
