Rack Mount Amplified GPS Splitter | 8 Output, HI-Isolation

Product Description

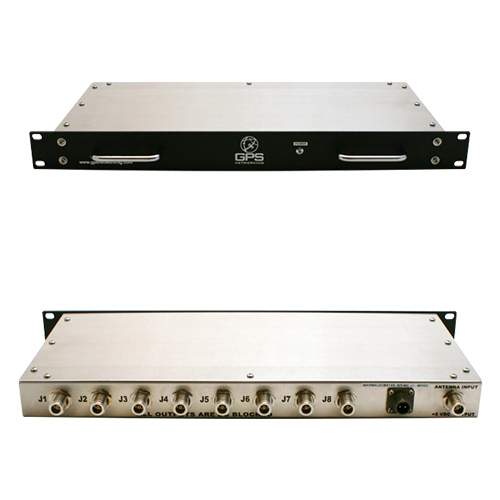

This Rack Mounted Amplified Loaded DC Blocked Splitter 1X8 (RMALDCBS1X8) is an active one input, 8 output RF splitter that splits signals from 1.1 GHz to 1.7 GHz with a form factor designed to be installed in a server rack. This equipment is designed to amplify and split signals within the L-band to provide multiple devices with the signal from a single antenna. In the standard configuration, the J1 port will pass DC voltage from a connected device and pass this power to the antenna or other devices upline from the splitter via the antenna port. The other ports (J2-J8) are DC blocked and loaded with 200Ω resistors to simulate antenna current draw which prevents antenna alarm faults. Custom gain configuration, DC configuration, and connector configuration are available upon request. With the larger form factor, we are able to add additional equipment to meet requirements not included in the default device at an additional cost and lead time.

This rack mount amplified GPS splitter (EDMO# NHIRMALD08) is a high isolation 8 output splitter.

Specifications

• Weight:
  3.9 lb
• Dimensions:
  17 x 8 x 1.75 in.
• Operating temperature:
  -40ºC to +75ºC
• Frequency range:
  1.1-1.7 GHz
• Impedance:
  50Ω
• Gain:
  14.5 dB typical
• Gain high isolation:
  0 dB
• Current:
  15 mA
• Input voltage:
  110 VAC
• Connector:
  SMA

Product Codes

• Mfr Part No
  NHIRMALDCBS1X8-S/5/110
