Network Variable Gain GPS Line Amplifier | 30 dB Gain with LCD, TNC connector, 12V, 9VDC—32VDC

Product Description

This variable gain GPS line amplifier features up to 30 dB of gain and an easy-to-use LCD display. This line amplifier is a one input and one output device that is optimized for GPS applications. The amount of gain can be changed using the control buttons, and the amount of gain is displayed on the LCD display. In the standard configuration, port J1 accepts DC voltage from a connected GPS receiver. This voltage is passed through to power an active antenna or other upstream device. In a networked (externally power) configuration, the output port (J1) is DC blocked, and a customer-defined output voltage is provided via the antenna port.

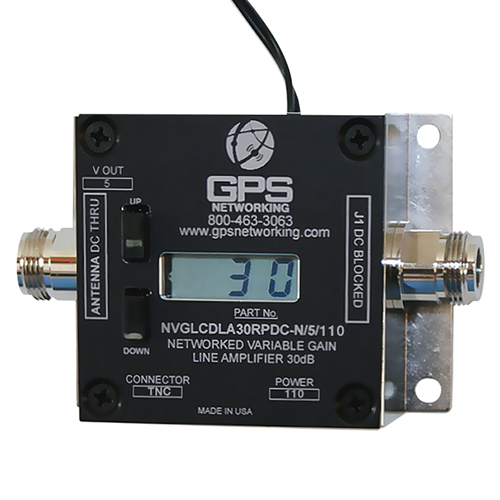

This variable gain GPS line amplifier (EDMO# NVGLCDLA-T) uses TNC connectors, 12-volt output voltage, and 9 VDC — 32 VDC customer supplied power source with a two-pin MIL-DTL-5015 10SL connector.

Specifications

• Weight:
  9.7 oz (275 g) max.
• Dimensions:
  1.27 x 3.26 x 2.5 in (not including connectors)
• Operating Temperature:
  -57°C to 87°C
• Frequency Range:
  1.1 GHz — 1.7 GHz
• Characteristic Impedance:
  50Ω
• Reverse Isolation:
  -60 dB, typical
• Req. DC Input V.:
  3.3 VDC — 15 VDC
• Current Draw:
  42 mA
• Minimum Gain:
  -1 dB 1 dB
• Maximum Gain:
  29 to 31 dB (30 dB, typical)
• Input SWR:
  2.0:1
• Output SWR:
  2.0:1
• Noise Figure (Minimum Gain):
  L1: 4.4 dB L2: 6.25 dB
• Noise Figure (Maxmium Gain):
  L1: 1.9 dB L2: 4.66 dB
• Band Gain Flatness:
  0.5 dB, typical (1.0 dB, max.)
• Specification
  Input P1dB: -22.9 dBm
• 3rd Order Intercept:
  -14 dBm
• Source Voltage Option:
  9 VDC — 32 VDC [customer supplied] MIL-DTL-5015 10SL Two-Pin DC Connector (Includes Mate)
• Output Voltage Option:
  12V @ 180 mA
• Connector Option:
  TNC type

Product Codes

• Mfr Part No
  NVGLCDLA30RPDC-T/12/MC
