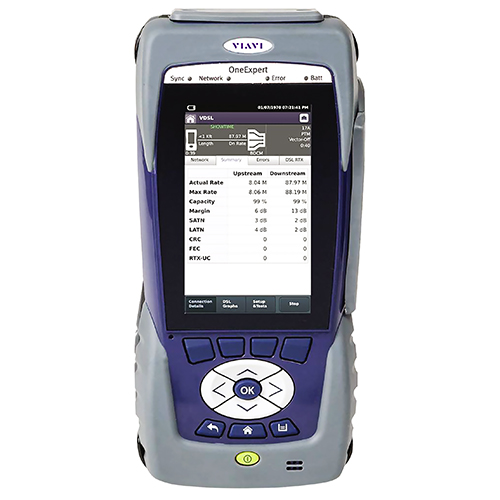

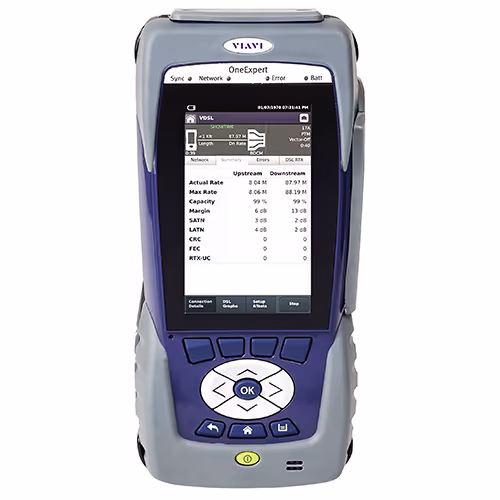

OneExpert DSL | ONX-580

VIAVI

Call For Pricing

Available to order

EDMO # ONX-580

MFR Part # ONX-580

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The OneExert DSL is a valuable tool assisting fielding technicians fix problems the right way the first time. Featuring a user-friendly, multi-touch display allows technicians easy access to OneCheck™ functions for automated testing ensuring clear pass/fail results. OneExpert offers integrated cloud application, multi-touch LCD interface, and remote control via smartphones and tablets to help users fix problems faster. A modular provides updates as the technology changes.

Features

Modular platform scales to WIFI, fiber, and xDSL technologies including VDSL profile 35b and G.fast
OneCheck automation simplifies field test copper and DSL results
One button OneCheck TDR auto quickly identifies fault types and location
Standard TrueSpeed™ test (RFC-6349)
OneExpert™ app allows mobile devices for remote control, data, enhancements, and connectivity
StrataSync™ cloud based asset, test, and data management provides test results, completed tasks, and equipment inventory

Specifications

Battery:

Li-Ion internal rechargeable, 7.4V, nominal voltage, 6,600 mAh
Connector:

DSL test module (8-pin or 6-pin, model dependent) Ethernet, 2 x 8-pin (RJ45) T/A, R/B, T1/B1, and ground/earth (2 mm recessed banana) POTS (8-pin modular (RJ45 and tip A — ring B) USB 2.0 client ports
Connectivity:

USB flash drive remote operation mobile device application
WIFI:

802.11 a/b/g/n (2.4 GHz & 5 GHz)
Audio Support:

speaker/microphone bluetooth headset
Permissible Ambient Temperature:

nominal range of use storage and transport
Humidity:

10% to 90%
Water/Dust Ingress:

IP54 compliant
Display:

127 mm (5 in) diagonal color WVGA (800 x 480 pixel) backlit LCD with projected capacitive multi-touch screen
