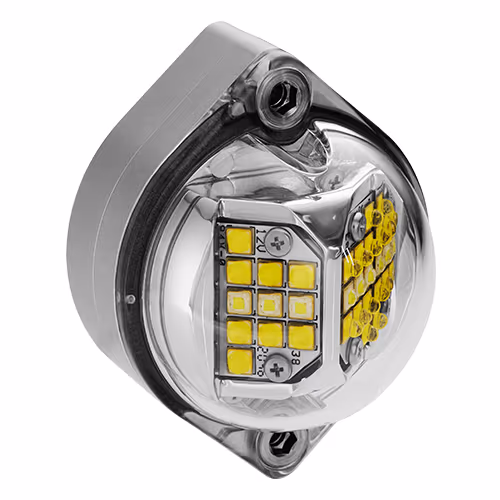

Orion 550 Series Position & Anti-Collision Tail Light | 14 VDC, White

Product Description

This Orion 550 Series light (EDMO# OR5501V) incorporates both white flashing anti-collision light funcitons and tail position light functions into one compact unit. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. This unit is also FAA/TSO Approved.

Specifications

• Weight:
  0.20 lb
• Dimensions:
  1.87 x 1.75 x 2.17 in
• Voltage Rating:
  14 VDC
• Current Draw:
  Position Light: 0.20 A Ani-Collision Light: 0.72 A Peak: 3.8 A
• Lens:
  Clear Hard-coated Polycarbonate

Product Codes

• Mfr Part No
  01-0772070V01
• SCHEDULE B CODE
  8541.41.0000
