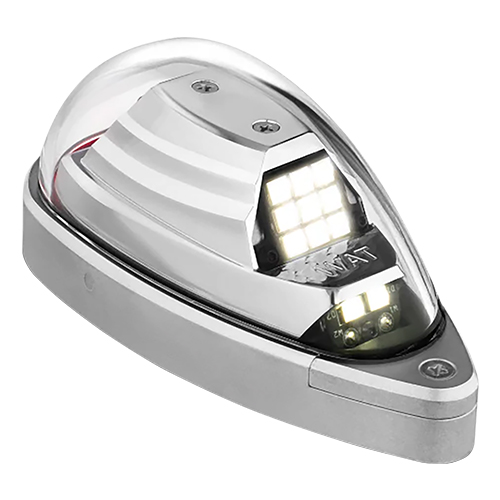

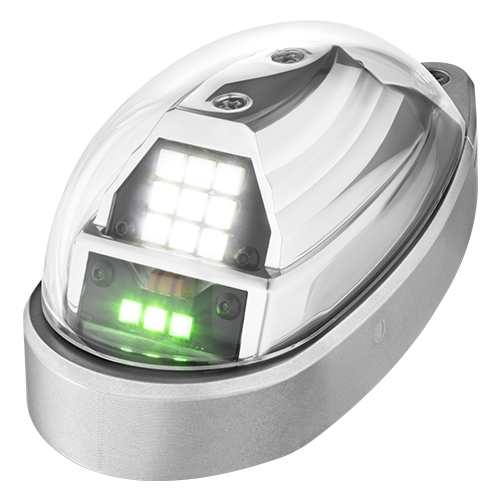

Orion 660 Series Forward & Tail Position & Anti-Collision Wingtip Light | 28 VDC, Green

Product Description

The Orion 660 series products integrate a red or green forward position light, a white flashing anti-collision light, and a tail position light into one compact unit. The built-in tail position light complies with all FAA requirements, eliminating the necessity for a separate tail-mounted position light. These products feature advanced LED circuitry, negating the need for additional flasher boxes. The footprint and mounting specifications are identical to legacy Whelen products, ensuring hassle-free installation and retrofitting. They have received full FAA/TSO approval, ensuring adherence to aviation standards.

This Orion 660 series light (EDMO# OR6602G) is compatible with 28-Volt systems and has a green forward position light.

Specifications

• Weight:
  0.30 lb
• Dimensions:
  3.95 x 1.68 x 1.79 in
• Voltage Rating:
  28 VDC
• Current Draw:
  Position Light: 0.20 A Anti-Collision Light 0.20 A Peak: 2.4 A
• Lens:
  Clear Hard-coated Polycarbonate
• LED Color:
  Green

Product Codes

• Mfr Part No
  01-0790877-11
• SCHEDULE B CODE
  8541.41.0000
