PAI-700 Vertical Card Compass | 28V, Northern Hemisphere
PRECISION AVIATION
EDMO#: PAI-700/28
MFR#: PAI-700
Description

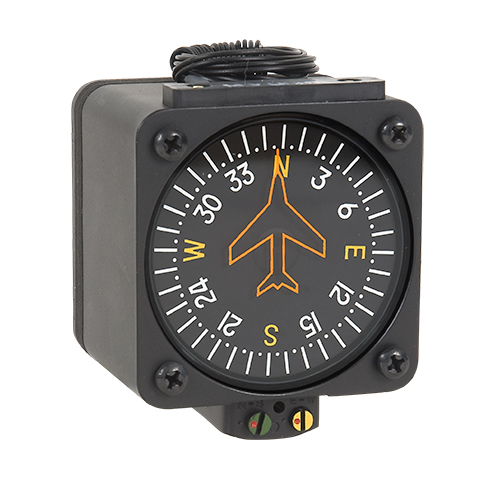

The PAI700 Vertical Card Magnetic Compass provides an easy-to-steer-by presentation with an airplane-shaped lubber line on the lens that allows full view of the 360 degree dial in relation to flight. The two-inch vertical dial rotates against a the fixed lubber line which shows the magnetic heading of the aircraft at all times (the heading is read at the 12 o'clock position and off the nose of the lubber line).
This vertical card compass (EDMO# PAI-700/28) operates on 28-volts and configured for use in the Northern Hemisphere.
Features
- TSO C7c Type 1 directional instrument, non-stabilized
- Magnetically driven compass reduces the side-to-side swinging movement
- Built-in eddy current damping stabilizes the PAI700 reducing overshoot
- Operational during inverted flight
- Usable in sailplanes
Specifications
Weight:
0.6 lb
Dimensions:
2-7/8 x 2-3/8 x 2-1/8 in
Product Codes
Mfr Part No :
PAI-700
ECCN :
9A991
SCHEDULE B CODE :
9014.10.9040
TSO :
C7c-1
