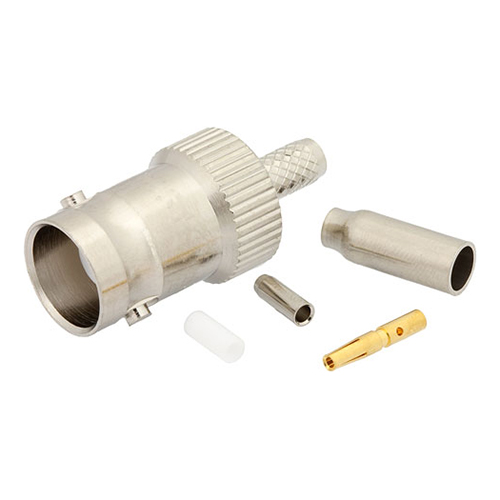

PE4079 BNC Female Connector | 50Ω, Crimp/Solder, Straight

Product Description

The PE4079 BNC female connector is a straight connector that has a crimp/solder attachment. It can fit over RRG174, RG316, RG188, LMR-100, PE-B100, PE-C100, and 0.100 inch RF cable.

Specifications

• Weight:
  0.023 lbs (10.43 g)
• Dimensions:
  1.280 x 0.453 x 0.453 in (32.51 x 11.51 x 11.51 mm)
• Operating Range:
  -65°C to 165°C
• Polarity:
  Standard
• Connector:
  BNC Female
• Impedance:
  50Ω
• Body Style:
  Straight
• Attachment Method:
  Crimp/Solder
• Frequency Range:
  DC – 1,000 MHz
• Operating Voltage (AC):
  500 Vrms
• VSWR:
  1.5:1 Max
• Contact Material:
  Gold Plated Brass
• Body Material:
  Nickel Plated Brass

Product Codes

• Mfr Part No
  PE4079
• SCHEDULE B CODE
  8536.69.4010
