PE4154 TNC Male Connector Clamp/Solder Attactment | 1.3:1 VSWR, 1 GHz, MIL-STD-348A
PASTERNACK
EDMO#: PE4154
MFR#: PE4154
Description

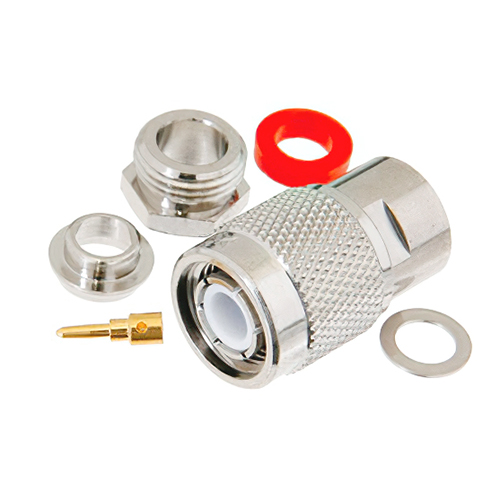

The PE4154 TNC male connector features a clamp/solder attachment for attaching to RG59, RG62, RG71 coax cables. This connector offers a maximum VSWR of 1.3:1 up to 1 GHz and is MIL-STD-348A compliant.
Features
- Straight Body Geometry
- VSWR 1.3:1 up to 1 GHz
- Gold-plated brass contact
- 30 µ-in minimum contact plated
- RG59, RG62, and RG71 cable interface types
Specifications
Weight:
0.044 lb (19.96 g)
Dimensions:
1.05 x 0.591 in (26.67 x 15.01 mm)
Frequency Range:
DC – 1 GHz
VSWR:
1.3:1
Operating Voltage:
500 Vrms
Contact Material:
gold-plated brass
Insolation Material:
nickel-plated brass
Body Material:
nickel-plated brass
Coupling Nut:
nickel-plated brass
Operation Temperature:
65°C to 165°C
Product Codes
Mfr Part No :
PE4154
ECCN :
EAR99
SCHEDULE B CODE :
8536.69.4010
