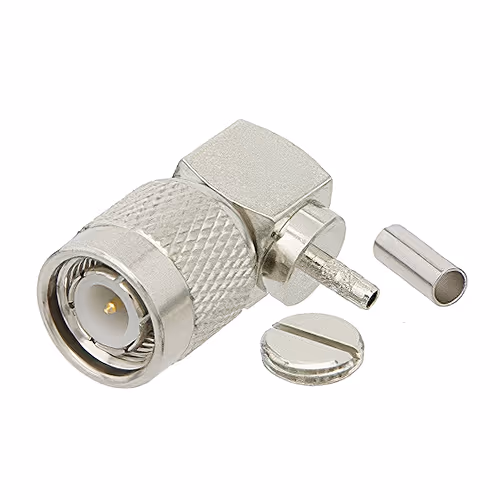

CONNECTOR/TNC male, 50 ohm, right angle crimp/solder attachment for RG174, RG316, RG188


PASTERNACK

EDMO#: PE4455

MFR#: PE4455

Call for Pricing

Description

The PE4455 TNC male right angle connector features a c crimp/solder attachment method for attaching to RG174, RG316, RG188, 0.100 inch, PE-B100, PE-C100, and LMR-100 coax cable. It offers a a frequency response from DC – 11 GHz.

Features

  • Right angle body geometry
  • DC – 11 GHz frequency range
  • 50Ω impedance
  • Gold-plated brass contact
  • RG174, RG316, RG188, 0.100 inch, PE-B100, PE-C100, LMR-100 interface type

Specifications

Weight:
0.049 lb (22.23 g)

Dimensions:
1.08 x 0.57 x 0.92 in (27.43 x 14.48 x 23.37 mm)

Frequency Range:
DC – 11 GHz

Connector Type:
TNC male

Impedance:
50Ω

Body Geometry:
right angle

Contact Material:
gold-plate brass

Insulation Material:
POM

Body Material:
nickel-plated brass

Operating Temperature:
-40°C to 85°C

Cable Compatibility:
RG174, RG316, RG188, 0.100in, PE-C100, LMR-100

Product Codes

Mfr Part No :

PE4455

ECCN :

EAR99

SCHEDULE B CODE :

8536.69.4010
