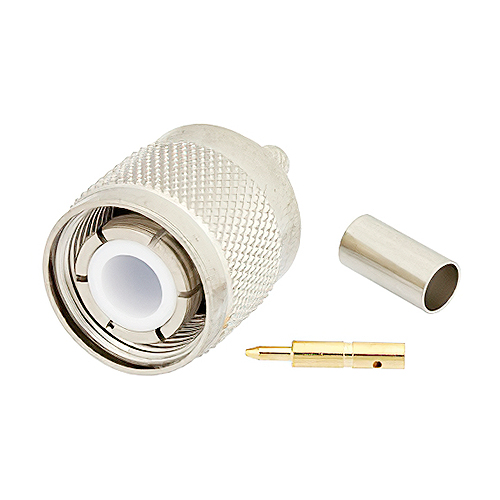

HN Male Connector | Straight, Crimp/Solder


PASTERNACK

Call For Pricing
In stock
EDMO # PE4477
MFR Part # PE4477
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The PE4477 HN male connector features a crimp/solder attachment for RG55, RG142, RG223, RG400, and RG141 coaxial cable. The connector operates up to a maximum frequency of 10 GHz and has a 50Ω impedance. This HN connector has a brass body with nickel plating and uses brass contact.

Features

  • HN Male Connector
  • MIL-STD-348A
  • 50Ω impedance
  • Max. operating frequency 10 GHz
  • Gold-plated brass contact

Specifications

  • Weight
    : 0.094 lb (42.64 g)
  • Dimensions
    : 1.613 x 0.9 in (40.97 x 22.86 mm)
  • Body Geometry:
    straight
  • Connect Interface Types:
    RG55, RG142, RG223, RG400, RG141
  • Contacts:
    gold-plated brass contact
  • Minimum Contact Plating:
    30 µ-in

Related Products

Product Codes

  • Mfr Part No
    PE4477
  • ECCN
    ear99
  • SCHEDULE B CODE
    8536.69.4010
