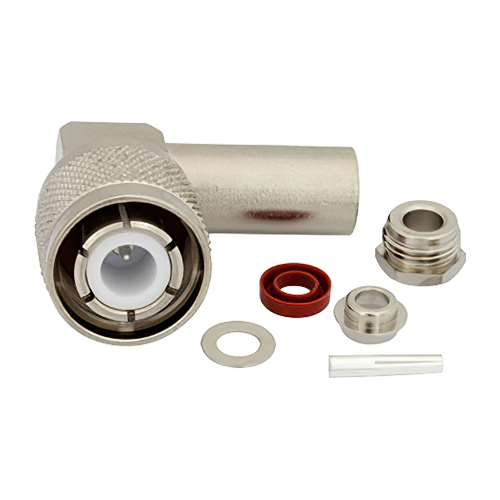

HN Male Connector | Right Angle, Clamp/Solder

PASTERNACK

Call For Pricing

Available to order

EDMO # PE4480

MFR Part # PE4480

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The PE4480 HN male right angle connector features a clamp/solder attachment for RG55, RG58, RG141, RG142, RG223, RG303, RG400, PE-C195, PE-P195, and LMR-195. Its right angle body geometry allows for easier connections in tight spaces.

Features

HN male connector
MIL-STD-348
50Ω impedance
Right angle body geometry
Clamp/solder attachment
Silver plated contact
Contact plating according to QQ-S-365
For general purpose testing and custom cable assemblies

Specifications

Weight:

0.178 lbs (80.74g)
Dimensions:

1.75 x 1.465 in (37.21mm), 0.9 in (22.86mm) diameter
Impedance:

50Ω
Body Geometry:

Right Angle
Connector Interface Types:

RG55, RG58, RG141, RG142, RG223, RG303, RG400, PE-C195, PE-P195, LMR-195
Contacts:

Silver Plated
Body:

Nickel Plated Brass
Operating Temperature:

-65 to 165°C
