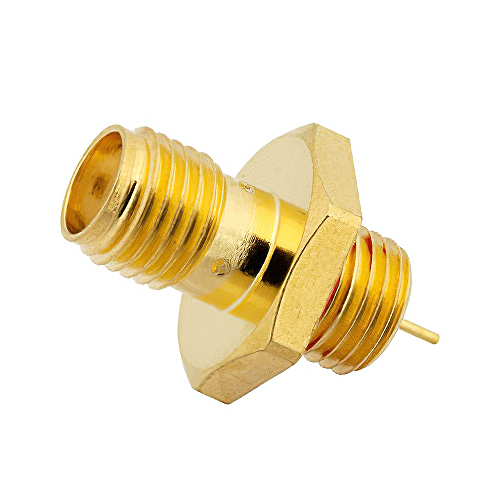

PE4530 SMA Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment | IP67, 18 GHz


PASTERNACK

EDMO#: PE4530

MFR#: PE4530

Description

The PE4530 SMA female bulkhead mount connector features a hermetically sealed, solder attachment with an IP67 ingress rating. This connector offers a maximum frequency response of 18 GHz and is MIL-STD-348 compliant.

Features

  • Straight body geometry
  • SMA Female connector
  • IP67 hermetically sealed
  • 18 GHz max. operating frequency
  • Gold-plated beryllium copper contact
  • MIL-STD-348 compliant

Specifications

Weight:
0.008 lb (3.63 g)

Dimensions:
0.69 x 0.437 in (17.53 x 11.10 mm)

Body Geometry:
bulkhead straight connector

Frequency Range:
DC – 18 GHz

Impedance:
50Ω

Connector interface:
Stub

Operating Temperature:
-65°C to 165°C

Ingress Protection:
IP67 rated

Hermetic Seal:
Leak rate no to exceed 1x10^-7 cc/sec of helium at 1 atm differential

Contact Material:
Gold-plated beryllium copper (MIL-G-45204)

Insulation Material:
PTFE

Body Material:
Gold-plated stainless Steel (MIL-G-45206)

Product Codes

Mfr Part No :

PE4530

SCHEDULE B CODE :

8536.69.4010
