BNC Male Straight Connector | 75Ω, RG179 & RG187

Product Description

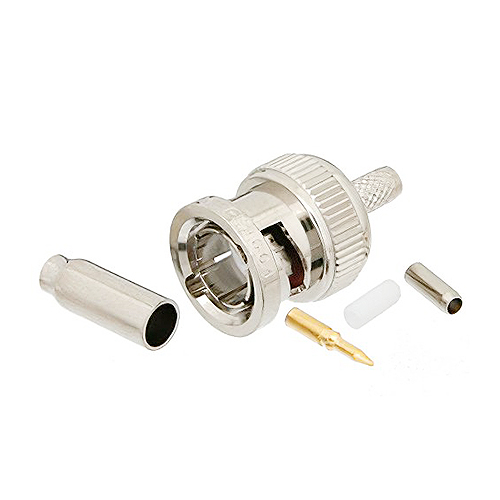

The PE4604 male straight connector uses a crimp solder attachment method for interfacing with RG179 and RG187 coaxial cable. This connector has a 75Ω impedance, frequency range up to 1,000 MHz, and VSWR of 1.3:1.

Specifications

• Weight
  : 0.027 lb (12.25 g)
• Dimensions:
  1.225 x 0.571 in (31.12 x 14.50 mm)
• Frequency:
  1,000 MHz, maximum
• VSWR:
  1.3:1
• Operating Voltage:
  500 Vrms
• Contact:
  gold-plated brass
• Insulation:
  PTFE
• Body Material:
  nickel-plated brass
• Coupling Nut:
  nickel-plated brass
• Crimp Sleeve:
  nickel-plated brass
• Temperature:
  -65°C to 165°C

Product Codes

• Mfr Part No
  PE4604
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.69.4010
