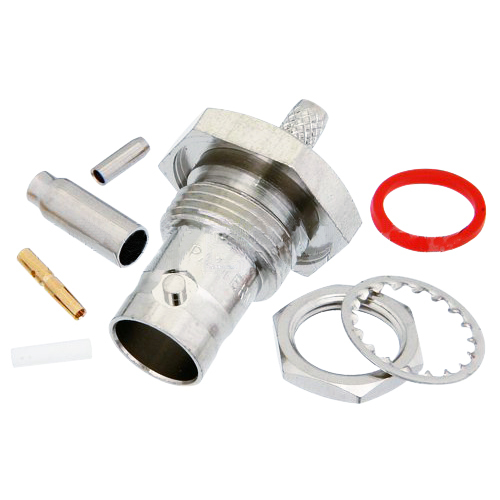

BNC Female Bulkhead Connector | 75Ω, RG179 & RG187, 0.480 inch D Hole

BNC Female Bulkhead Connector | 75Ω, RG179 & RG187, 0.480 inch D Hole

PASTERNACK

Call For Pricing
Available to order
EDMO # PE4640
MFR Part # PE4640
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The PE4640 female bulkhead connector uses a crimp solder attachment method for interfacing with RG179 and RG187 coaxial cable. This bulkhead connector has a 75Ω impedance, frequency range up to 1,000 MHz, and VSWR of 1.3:1.

Features

  • BNC female bulkhead connector
  • 75 ohm
  • Straight body geometry
  • interfaces with RG179 and RG187 cable
  • Crimp/solder attachment

Specifications

  • Weight:
    0.041 lb (18.6 g)
  • Dimensions:
    1.43 x 0.689 (36.32 x 17.50 mm)
  • Frequency:
    1,000 MHz, maximum
  • VSWR:
    1.3:1
  • Operating Voltage:
    500 Vrms AC
  • G
    old-plated brass
  • Insulation:
    PTFE
  • Body:
    Nickel-plated brass
  • Mounting Hole:
    0.480 inch D-hole
  • Temperature:
    -65°C to 165°C

Related Products

Product Codes

  • Mfr Part No
    PE4640
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.69.4010
