TNC Male Reverse Polarity Connector | Straight, Crimp/Solder


PASTERNACK

Call For Pricing
Available to order
EDMO # PE4664
MFR Part # PE4664
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

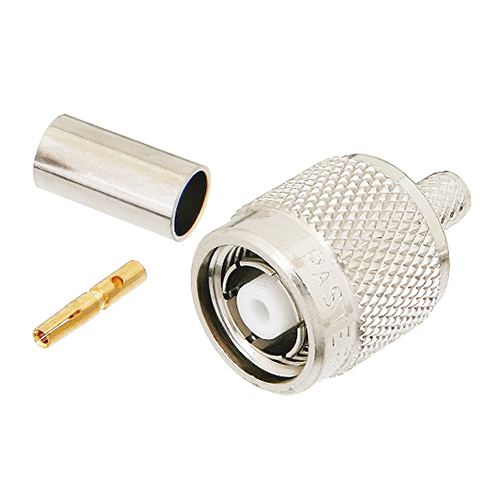

The PE4664 is a reverse polarity TNC male connector has an interface type for RG58 and a 50Ω impedance. This reverse polarity connector uses shield/contact crimp/solder as an attachment method. It features a brass body with nickel plating.

Features

  • TNC male connector
  • Reverse polarity
  • 50Ω impedance
  • 10 GHz Max. operating frequency

Specifications

  • Weight:
    0.034 lb (15.42 g)
  • Dimensions:
    1.097 x 0.571 in (27.86 x 14.5 mm)
  • Body Geometry:
    straight
  • Polarity
    : Reverse
  • Impedance:
    50Ω
  • Connect Interface Types:
    RG58
  • Contacts:
    gold-plated brass contact
  • Minimum Contact Plating:
    30 µ-in

Related Products

Product Codes

  • Mfr Part No
    PE4664
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.69.4010
