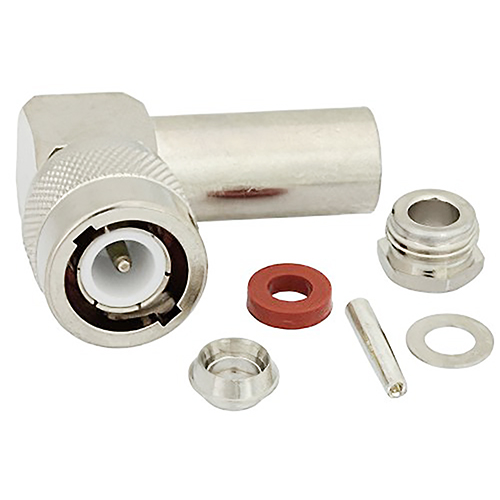

C Male Right Angle Connector Clamp | Solder Attachment

Product Description

PE4957 type C male right angle coaxial connector has an interface type of RG55, RG58, RG141, RG142, RG223, RG303, RG400, PE-C195, PE-P195, LMR-195 and a 50 Ohm impedance. Pasternack type C male connector uses shield/contact clamp/solder as an attachment method.

The Pasternack right angle type C male coaxial connector has a PTFE dielectric type. The Pasternack type C coaxial connector has a brass body with nickel plating. This type C male right angle coaxial RF connector is RoHS and REACH compliant.

Specifications

• Weight:
  0.144 lbs (65.32 g)
• Dimensions:
  1.76 x 0.75 x 1.303 (44.7 x 19.05 x 33.1 mm)
• Polarity:
  Standard
• Connector Series:
  C
• Connector Gender:
  Male
• Impedance:
  50 Ohm
• Body Style:
  Right Angle
• Attachment Method:
  Clamp/Solder
• Mount Method:
  None
• Interface Types:
  RG55, RG58, RG141, RG142, RG223, RG303, RG400, PE-C195, PE-P195, LMR-195

Product Codes

• Mfr Part No
  PE4957
• SCHEDULE B CODE
  8536.69.4010
