10 Watt RF Load | BNC Male Connector, 4 GHz

Product Description

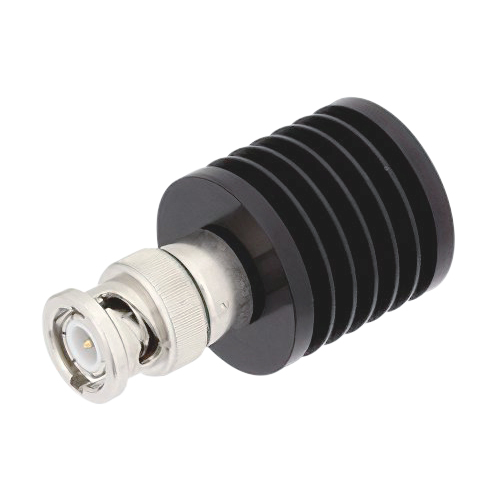

The PE6034 RF termination is designed to operating from DC to 4 GHz and can handle up to 10 watts of power RF power. It features a BNC male connector and offers a maximum 1.25:1 VSWR. The black anodized heatsink will provide adequate heat dispensation within its full operating frequency.

Specifications

• Weight:
  0.0795 lb (36.06 g)
• Dimensions:
  1.84 x 1 in (48.74 x 25.4 mm)
• Frequency Range:
  DC ~ 4 GHz
• Impedance:
  50Ω
• VSWR:
  1.25:1
• Input Power:
  10W CW (derated linearly to 2W @ 125°C)
• Peak Input Power:
  500W, 5µs pulse duty cycle
• Temperature:
  -65°C to 125°F, operating
• Connector Contact Material:
  Gold-plated, Beryllium Copper
• Insulation Material:
  PTFE
• Coupling Nut Material:
  Nickel-plated, brass
• Housing Material:
  Black anodized aluminum heatsink

Product Codes

• Mfr Part No
  PE6034
• SCHEDULE B CODE
  8536.69.4010
