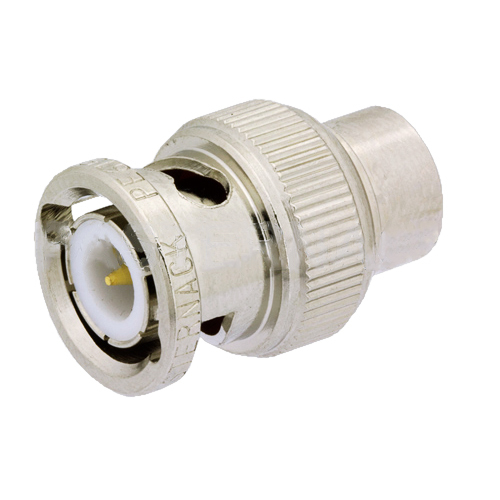

PE6156 RF Termination Load | 2 watt, DC – 4 GHz, BNC male

PE6156 RF Termination Load | 2 watt, DC – 4 GHz, BNC male

PASTERNACK

Call For Pricing
Available to order
EDMO # PE6156
MFR Part # PE6156
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The PE6156 is a two watt RF termination load with a BNC male, nickel-plated brass coaxial connector that operates from DC 4 GHz.

Features

  • DC to 4 GHz frequency range
  • Two watt (CW) maximum power
  • -16 dB maximum return loss
  • BNC male coaxial interface
  • Ideal use in wireless, SatCom, radar systems, test & measurement, commercial & military communications

Specifications

  • Weight:
    0.02 lb (9.07 g)
  • Dimensions:
    0.84 x 0.54 in (21.34 x 13.72 mm)
  • Connector:
    BNC male
  • Frequency Range:
    4 GHz, DC
  • Impedance:
    50Ω
  • Return Loss:
    -16 dB
  • Input Power (CW):
    2 watts

Related Products

Product Codes

  • Mfr Part No
    PE6156
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.69.4010
