RF Load Connector | 2 Watt, Up to 4GHz, BNC Male

Product Description

RF Load Connectors are indispensable components in many RF, microwave, and millimeter wave systems where signal reflection from unused ports can potentially damage the device or reduce the signal integrity. By terminating an unused port with a matched load, the incident energy will be absorbed with minimal reflection. These termination components are commonly used to terminate devices such as couplers, circulators, and switches. They are also widely used in measurement systems to ensure accurate results.

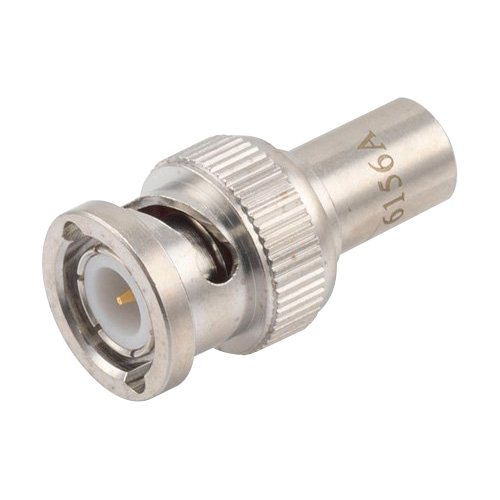

This RF Load Connector (EDMO# PE6156A) is a BNC male connector that operates from DC to 4 GHz and handles up to 2 Watts(CW).

Specifications

• Weight:
  0.0269 lbs (12.2 g)
• Dimensions:
  1.1 x 0.57 in (27.94 x 14.48 mm)
• Connector:
  BNC Male
• Frequency Range:
  DC to 4 GHz
• Impedance:
  50Ω
• VSWR:
  1.2:1
• Input Power(CW):
  2 W

Product Codes

• Mfr Part No
  PE6156A
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.69.4010
