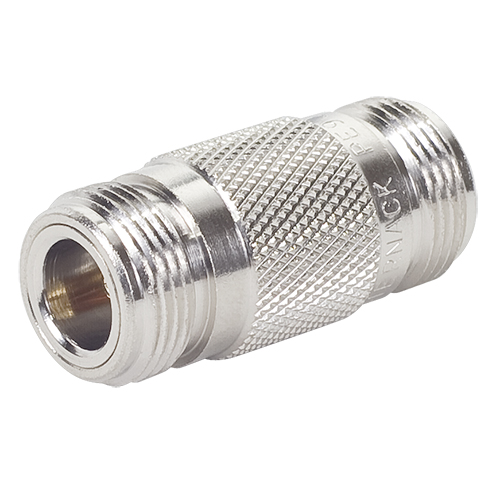

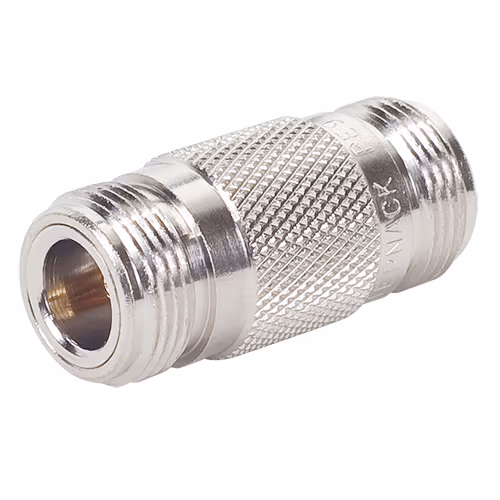

PE9006 N Female to N Female Adapter


PASTERNACK

Call For Pricing
Available to order
EDMO # PE9006
MFR Part # PE9006
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The PE9006 N-type to N-type female adapter facilities the connection one N-type terminal to another. It features a straight body design and a maximum VSWR of 1.3:1 up to 11 GHz.


N-type female to N-type female adapter (EDMO# PE9006) has maximum VSWR of 1.3:1 up to 11 GHz, 50Ω impedance, and MIL-STD-348A compliant.

Features

  • 1.3:1 Max VSWR up to 11 GHz
  • 50 ohm impedance
  • N interface compliant with MIL-STD-348A
  • Gold-Plated Brass contact
  • 30 µ-in gold contact plated

Specifications

  • Weight:
    0.1 lb
  • Dimensions:
    1.437 x 0.669 in (36.5 x 16.99 in)
  • Frequency Range:
    DC – 11 GHz
  • VSWR:
    1.3:1
  • Impedance:
    50Ω
  • Operating Voltage:
    1,000 Vrms (AC)
  • Connector Type:
    N Female
  • Polarity:
    standard
  • Interface Specification:
    MIL-STD-348A
  • Contact Material:
    Gold-Plated brass
  • Insulation Material:
    PFTE
  • Outer Conductor:
    Nickel-plated brass
  • Operating Temperature:
    -65°C to 165°C

Related Products

Product Codes

  • Mfr Part No
    PE9006
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.69.4010
