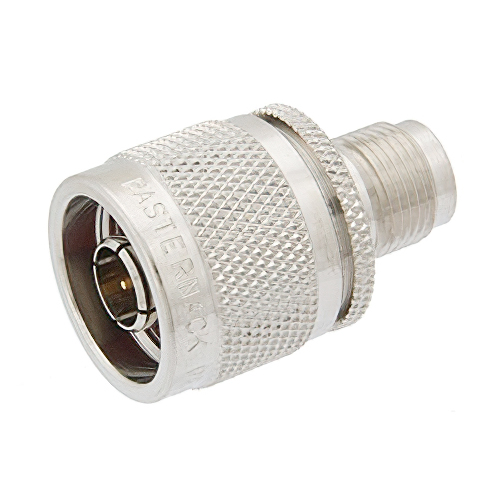

PE9090 N Male to TNC Female Adapter | DC – 1,000 MHz, MIL-STD-348A
PASTERNACK
EDMO#: PE9090
MFR#: PE9090
Description
The PE9090 TNC female to N male adapter features a straight body geometry and a gold-plated brass scontact. This connector also has maximum 1.5:1 VSWR up to 1,000 MHz with a 50Ω impedance and is MIL-STC-348A compliant.
Features
- Straight body geometry
- 1.5:1 VSWR up to 1,000 MHz
- 50Ω impedance
- Gold-plated brass contacts
- N male to TNC female
Specifications
Weight:
0.082 lb (37.19 g)
Dimensions:
1.272 x 0.787 x 0.787 in (32.31 x 19.99 x 19.99 mm)
Frequency Range:
DC – 1,000 MHz
VSWR:
1.5:1
Operating Voltage:
500 Vrms AC
Polarity:
standard
Interface Specifications:
MIL-STD-348A
Contact Material:
gold-plated brass (30 µ-in min.)
Insulation Material:
PTFE
Outer Conductor:
nickel-plated brass (100 µ-in min.)
Body Material:
nickel-plated brass (100 µ-in min.)
Gasket Material:
silicone
Coupling Nut Material:
nickel-plated brass (100 µ-in min.)
Operating Temperature:
-65°C to 165°C
Product Codes
Mfr Part No :
PE9090
ECCN :
EAR99
SCHEDULE B CODE :
8536.69.4010
