TNC Male to TNC Male RF Adapter | 50Ω, Straight Body Geometry

Product Description

RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly changed connection is made with the adapter which can be easily replaced when it wears out after high usage.

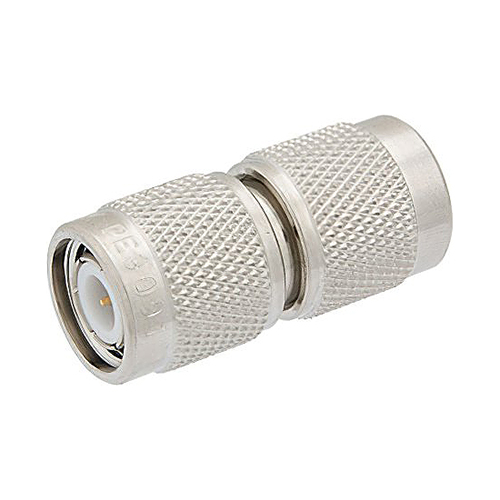

This RF adapter (EDMO# PE9091) is an TNC male to TNC male adapter with a straight body geometry.

Specifications

• Weight:
  0.059 lb (26.76 g)
• Dimensions:
  1.276 x 0.571 x 0.571 in (32.41 x 14.5 x 14.5 mm)
• Frequency Range:
  DC to 1000 MHz
• VSWR:
  1.3:1
• Operating Voltage:
  500 Vrms
• Operating Range:
  -65°C to 165°C
• Impedance:
  50Ω
• Connector Types:
  TNC Male to TNC Male
• Polarity:
  Standard
• Contact Material:
  Gold Plated Brass Contact
• Body Material:
  Nickel Plated Brass

Product Codes

• Mfr Part No
  PE9091
• SCHEDULE B CODE
  8536.69.4010
