TNC Female to BNC Male RF Adapter | 50Ω, Straight Body Geometry

Product Description

RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly changed connection is made with the adapter which can be easily replaced when it wears out after high usage.

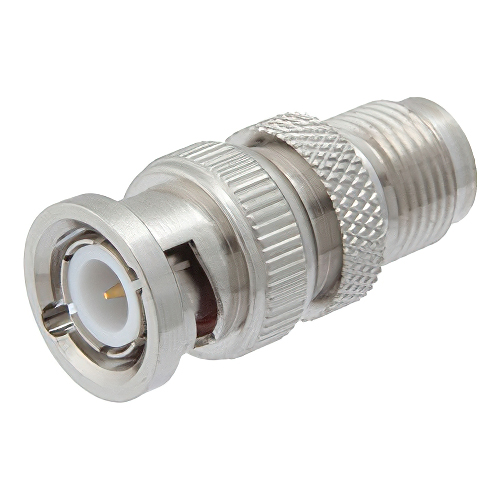

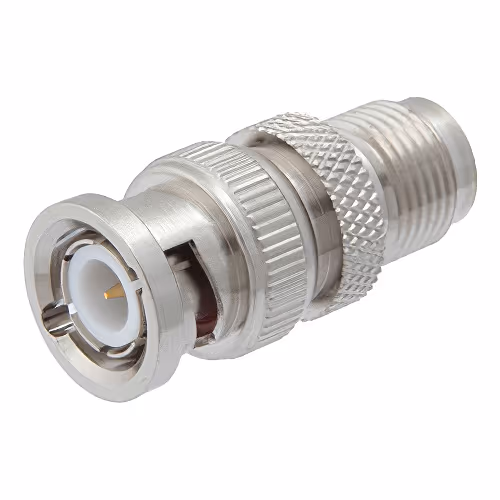

This RF adapter (EDMO# PE9098) is a TNC female to BNC male adapter with a straight body geometry.

Specifications

• Weight:
  0.038 lb (17.24 g)
• Dimensions:
  1.24 x 0.571 in (31.5 x 14.5 mm)
• Frequency Range:
  DC to 4 GHz
• VSWR:
  1.3:1
• Operating Voltage:
  500 Vrms
• Dielectric Withstanding Voltage:
  1500 Vrms
• Inner Conductor DC Resistance:
  1.5 mΩ
• Outer Conductor DC Resistance:
  0.5 mΩ
• Operating Range:
  -65°C to 165°C
• Impedance:
  50Ω
• Connector Types:
  TNC Female to BNC Male
• Polarity:
  Standard
• Contact Material:
  Gold Plated Brass
• Body Material:
  Nickel Plated Brass

Product Codes

• Mfr Part No
  PE9098
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.69.4010
