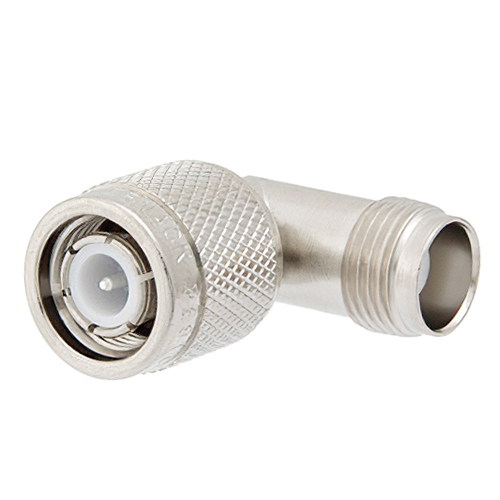

PE9100 TNC Male to TNC Female Right Angle Adapter | DC–11 GHz, MIL-STD-348

Product Description

The PE9100 TNC male to TNC female adapter features a right angle body geometry and a silver-plated beryllium copper contact. This connector also has a frequency range from DC up to 11 GHz with a 50Ω impedance and is MIL-STC-348 compliant.

Specifications

• Weight:
  0.049 lb (22.23 g)
• Dimensions:
  1.05 x 0.59 x 1.03 in (26.67 x 14.99 x 26.16 mm)
• Frequency Response:
  DC – 11 GHz
• Operating Voltage:
  500 Vrms AC
• Dielectric Withstanding Voltage:
  1,500 Vrms AC
• Polarity:
  Standard
• Interface Specification:
  MIL-STD-348
• Contact Material:
  Silver-plated beryllium copper (200 µ-in min.)
• Insulation Material:
  PTFE
• Outer Conductor Material:
  Nickel-plated brass (150 µ-in min.)
• Body Material:
  Nickel-plated brass (150 µ-in min.)
• Operating Temperature:
  -65°C to 165°C

Product Codes

• Mfr Part No
  PE9100
• ECCN
  EAR99
• SCHEDULE B CODE
  8536.69.4010
