HN Male to BNC Female RF Adapter | 50Ω, Straight Body Geometry

Product Description

RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly changed connection is made with the adapter which can be easily replaced when it wears out after high usage.

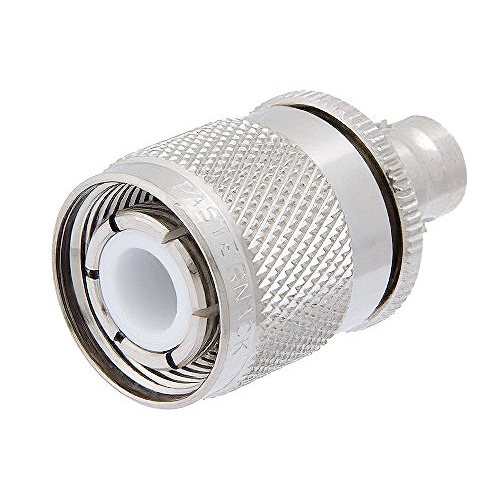

This RF adapter (EDMO# PE9126) is an HN male to BNC female adapter with a straight body geometry.

Specifications

• Weight:
  0.103 lb (46.72 g)
• Dimensions:
  1.508 x 0.866 in (38.3 x 22 mm)
• Frequency Range:
  DC – 4 GHz
• VSWR:
  1.5:1
• Operating Voltage:
  500 Vrms AC
• Dielectric Withstanding Voltage:
  1,500 Vrms AC
• Polarity:
  Standard
• Interface Specifications:
  MIL-STD-348A
• Contact Material:
  Gold-plated brass (30 µ-in min.)
• Insulation Material:
  PTFE
• Outer Conductor Material:
  Nickel-plated brass (100 µ-in min.)
• Body Material:
  Nickel-plated brass (100 µ-in min.)
• Gasket Material:
  Silicone
• Coupling Nut Material:
  Nickel-plated brass (100 µ-in min.)
• Operating Temperature:
  -65°C to 165°C

Product Codes

• Mfr Part No
  PE9126
• SCHEDULE B CODE
  8536.69.4010
