PE9206 N Female to BNC Female Adapter | DC–GHz, 1.5 GHz


PASTERNACK

Call For Pricing
Available to order
EDMO # PE9206
MFR Part # PE9206
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

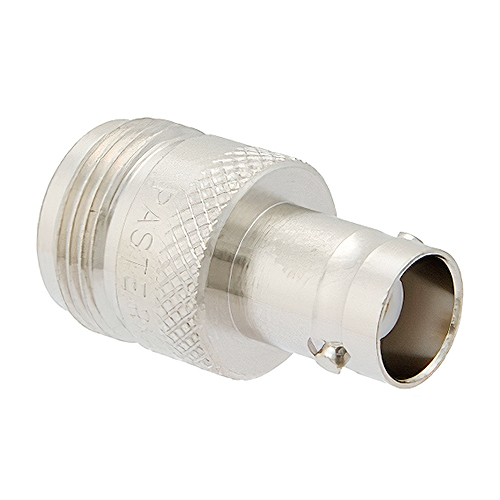

The PE9206 N female to BNC male adapter features a straight body geometry and a gold over nickel-plated brass contact. This connector also has maximum 1.5:1 VSWR up to 3 GHz with a 50Ω impedance and is MIL-STC-348A compliant.

Features

  • Straight body geometry
  • 1.5:1 maximum VSWR up to3 GHz
  • 50Ω impedance
  • Gold over nickel-plated brass contacts
  • N Female to BNC Female

Specifications

  • Width:
    0.05 lb (22.68 mm)
  • Dimensions:
    1.102 x 0.625 in (27.99 x 18.55 mm)
  • Frequency Range:
    DC – 3 GHz
  • VSWR:
    1.5:1
  • Operating Voltage:
    500 Vrms AC
  • Inner Conductor DC Resistance:
    1.5 mΩ
  • Outer Conductor DC Resistance:
    1 mΩ
  • Specification
    b5,000 mΩ
  • Connector Type:
    N female (connector 1) BNC female (connector 2)
  • Polarity:
    standard
  • Interface Specifications:
    MIL-STD-348A
  • Mating Cycles:
    500
  • Contact Material:
    gold over nickel-plated brass (30 µ-in min.)
  • Insulation:
    PTFE
  • Outer Conductor:
    nickel-plated brass (100 µ-in min.)
  • Operating Temperature:
    -65°C to 165°C
