PE9278 N Male to BNC Female Right Angle Adapter | 1.2 VSWR, 50Ω


PASTERNACK

Call For Pricing
Available to order
EDMO # PE9278
MFR Part # PE9278
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

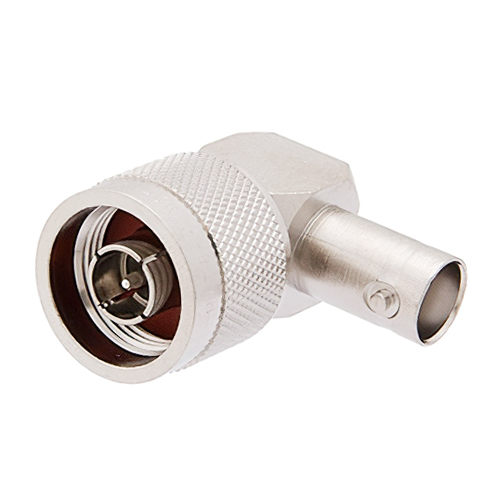

The PE9278 N male to to BNC female adapter features a right angle geometry for connecting cables with N-type and BNC-type terminals. This adapter features a maximum VSWR of 1.2:1 up to 4 GHz and is MIL-STD-348 compliant.

Features

  • Right angle geometry
  • VSWR 1.2:1 max up to 4 GHz
  • N interface compliant MIL-STD-348
  • BNC interface compliant MIL-STD-348
  • Silver-plated contact
  • Contact plated per QC-S-365

Specifications

  • Weight:
    0.11 lb (49.9 g)
  • Dimensions:
    1.29 x 0.8 x 1.275 in (32.77 x 20.32 x 32.39 mm)
  • Frequency Range:
    DC – 4 GHz
  • VSWR:
    1.2:1
  • Impedance:
    50Ω
  • Operating Temperature:
    -65°C to 165°C
  • Connector Type:
    N male (connector 1) BNC female (connector 2)
  • Polarity:
    Standard
  • Interface Specifications:
    MIL-STD-348
  • Contact Material:
    silver QQ-S-365
  • Insulation Material:
    PTFE
  • Outer Conductor:
    nickel-plated brass
  • Body Material:
    nickel-plated brass
  • Coupling Nut:
    nickel-plated brass

Related Products

Product Codes

  • Mfr Part No
    PE9278
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.69.4010
