N Male to N Female RF Adapter | 50Ω, Straight Body Geometry

Product Description

RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly changed connection is made with the adapter which can be easily replaced when it wears out after high usage.

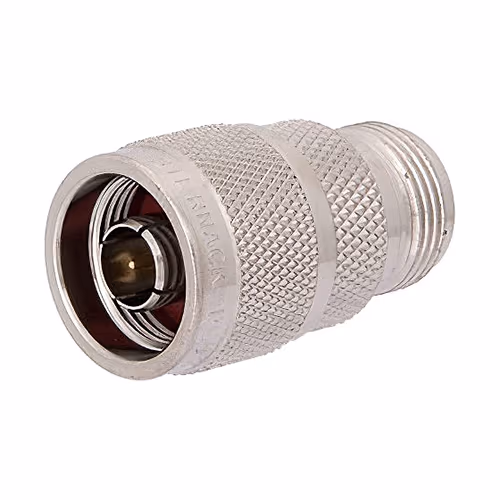

This RF adapter (EDMO# PE9311) is an N male to N female adapter with a straight body geometry.

Specifications

• Weight:
  0.104 lb (47.17 g)
• Dimensions:
  1.39 x 0.787 in (35.31 x 19.99 mm)
• Frequency Range:
  DC to 11 GHz
• VSWR:
  1.3:1
• Operating Voltage:
  1000 Vrms
• Operating Range:
  -65°C to 165°C
• Impedance:
  50Ω
• Connector Types:
  N Male to N Female
• Polarity:
  Standard
• Contact Material:
  Gold Plated Brass Contact
• Body Material:
  Nickel Plated Brass

Product Codes

• Mfr Part No
  PE9311
• SCHEDULE B CODE
  8536.69.4010
