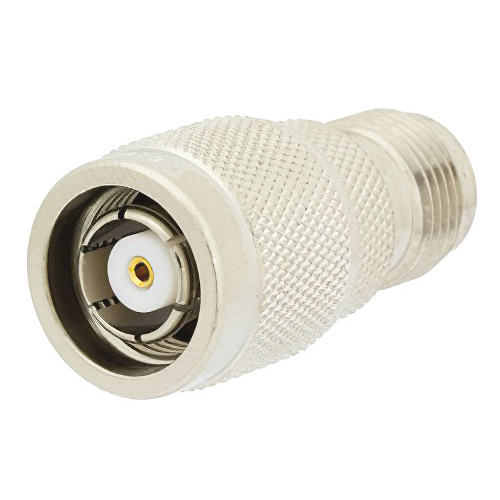

TNC Female to Reverse Polarity TNC Male Adapter


PASTERNACK

Call For Pricing
Available to order
EDMO # PE9531
MFR Part # PE9531
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The PE9531 reverse polarity adapter features a TNC male connector on one end and a TNC female connection on the other. The TNC female connector has a standard polarity, while the TNC male connector's polarity is reversed.

Features

  • 6 GHz frequency
  • Straight body style
  • 50Ω impedance

Specifications

  • Dimensions:
    1.22 x 0.6 x 0.046 in (30.99 x 15.24 x 20.87 mm)
  • Connector 1:
    TNC female, standard polarity, MIL-STD-348, 500 mating cycles
  • Connecter 2:
    TNC male, reverse polarity, MIL-STD-348, 500 mating cycles
  • Temperature:
    -65°C to 165°C
  • Contact Material:
    Gold
  • Insulation Material:
    PTFE
  • Outer Connector Material:
    nickel-plated brass (connector 1)
  • Body Material:
    nickel-plated brass (connector 2)
  • Coupling Nut:
    nickel-plated brass (connector 2)

Related Products

Product Codes

  • Mfr Part No
    PE9531
  • SCHEDULE B CODE
    8536.69.4010
