N Male to TNC Female RF Adapter | 50Ω, Right Angle Body Geometry
PASTERNACK
EDMO#: PE9550
MFR#: PE9550
Description
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly changed connection is made with the adapter which can be easily replaced when it wears out after high usage.

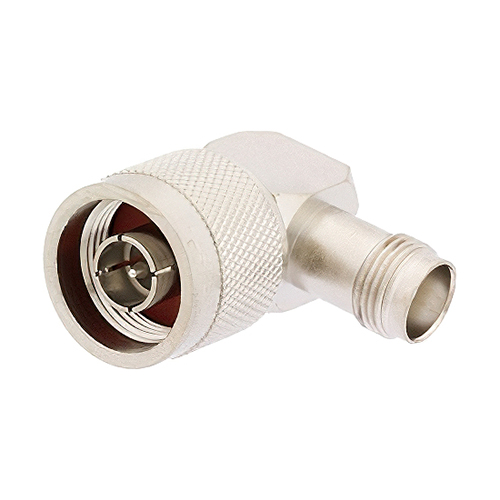

This RF adapter (EDMO# PE9550) is an N male to TNC female adapter with a right angle body geometry.
Features
No product specifications currently available.
Specifications
Weight:
0.11 lb (49.9 g)
Dimensions:
1.268 x 0.8 x 1.16 in (32.66 x 20.32 x 29.46 mm)
Frequency Range:
DC to 6 GHz
VSWR:
1.33:1
Operating Range:
-65°C to 165°C
Impedance:
50Ω
Connector Types:
N Male to TNC Female
Polarity:
Standard
Contact Material:
Silver Plated Contact
Body Material:
Nickel Plated Brass
Product Codes
Mfr Part No :
PE9550
SCHEDULE B CODE :
8536.69.4010
