TNC Male to BNC Female Right Angle Adapter | 50Ω, MIL-STC-348


PASTERNACK

Call For Pricing
Available to order
EDMO # PE9783
MFR Part # PE9783
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

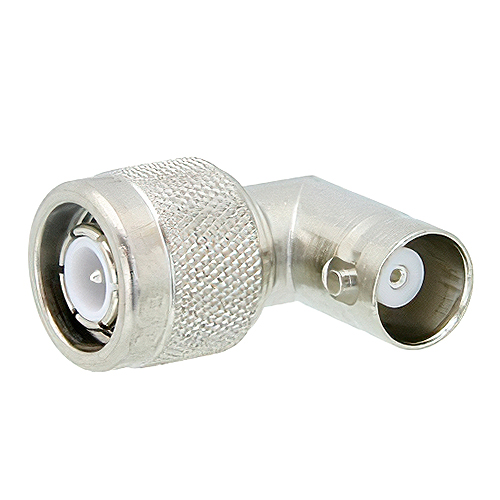

The PE9783 TNC male to BNC female adapter features a right angle body geometry and a silver contact. This connector also has a 50Ω impedance and is MIL-STC-348 compliant.

Features

  • Right angle body geometry
  • 50Ω impedance
  • Silver contact (QQ-S-365)
  • TNC & BNC interface compliant with MIL-STD-348

Specifications

  • Weight:
    0.04 lb (18.14 g)
  • Dimensions:
    1.04 x 0.59 x 0.8 in (26.42 x 14.99 x 20.32 mm)
  • Operating Voltage:
    500 Vrms AC
  • Dielectric Withstanding Voltage:
    1,500 Vrms AC
  • Insulation Resistance:
    5,000 MΩ
  • Connector Type:
    TNC male (connector 1) BNC female (connector 2)
  • Interface Specification:
    MIL-STD-348
  • Contact Material:
    Silver (QQ-S-365)

Related Products

Product Codes

  • Mfr Part No
    PE9783
  • SCHEDULE B CODE
    8536.69.4010
