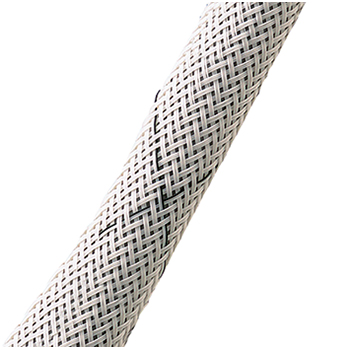

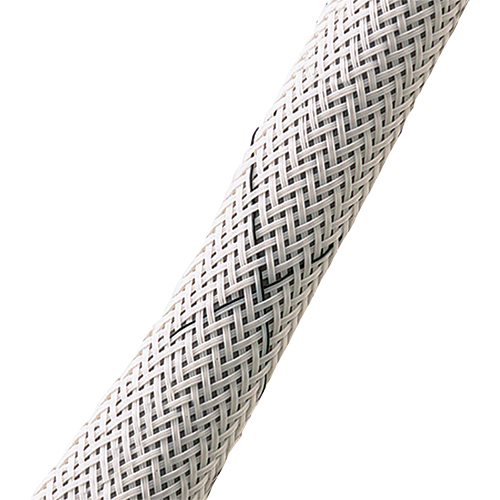

Protect-Fast AERO Sleeving | 1/2 in, ECTFE, White w/ Black Tracer, 100 ft roll

Protect-Fast AERO Sleeving | 1/2 in, ECTFE, White w/ Black Tracer, 100 ft roll

DEVICE TECHNOLOGIES

EDMO#: PFAECM3WT1

MFR#: PFA-ECM3-WT-0100

Description

Protect-Fast™ AERO braided sleeving is a tough, lightweight method for protecting cable assemblies, hoses, and wire harnesses from abrasion and cutting while also helping to simplify the installation process. The ECM material is FAR25 approved with low outgassing, is resistant to strong acids and gasoline, and has a temperature rating from -75°C to 125°C.

This AERO sleeving  (EDMO# PFAECM3WT1) is constructed with ECTFE copolymer material, is colored white with a black tracer, and has a 1/2 inch diameter. 100 foot mini roll.

Features

  • Nominal size: 1/2 inch
  • Expansion range: 1/4 - 3/4 inch
  • Mini roll: 100 ft
  • Color: white with black tracer
  • Wide operating temperature ranges; melt temperature: 285°C
  • Resistant to chemicals and corrosion
  • High and medium abrasion resistance
  • Low and medium outgassing

Specifications

Material:
ECTFE copolymer monofilament

Monofilament Diameter:
0.011 in

Wall Thickness:
0.028 in

Flammability Rating:
UL VW-1

Industry Standard Approvals:
UL 2024 Plenum
NFPA 262 Plenum
FAR 25
FMVSS 302

Expansion:
150% sleeve

Operating Temperature:
-75°C to 150°C (-103°F to 302°F)

Melting Temperature:
250°C (482°F)

Corrosion Resistance:
strong acids, Chlorine, aqueous caustics, gasoline, engine chemicals

Abrasion Resistance:
medium

Recommended Cutting:
with hot knife

Outgassing:
low

Product Codes

Mfr Part No :

PFA-ECM3-WT-0100
