PS-28100 Series Aircraft Ramp Power Supply | 28VDC, 100A, 120VAC, 60Hz, Eclipse


DB ASSEMBLY, INC

Call For Pricing
Available to order
EDMO # PS28100ECL
MFR Part # P-28100ECL
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

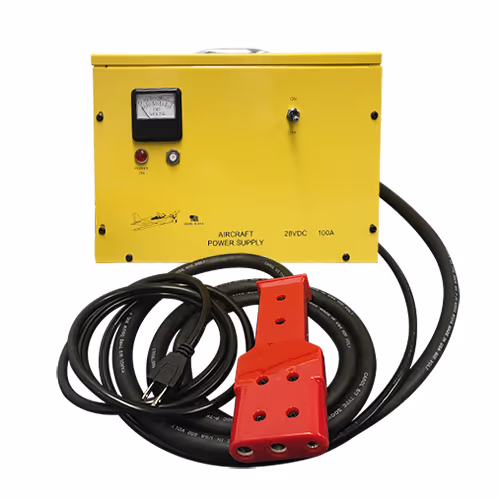

The Bycan PS-28100 Aircraft Ramp Power Supply is an aircraft flight line service and maintenance tool. The APU unit has a filtered 28 volt DC power supply with up to 100 amperes capability for tests of aircraft electrical systems. This ramp or hangar accessory is an absolute must for avionics service, gear and flap actuator exercising and other electrical system service.

Version PS-28100ECL operates on 120VAC, 60Hz, 100A, designed for Eclipse E-500 aircraft.

Features

  • 100 amperes filtered 28 volt supply
  • Plugs directly to aircraft APU connector
  • Activated by electrical system master switch
  • Aircraft APU connectors furnished
  • Front panel metering
  • Operates from 120 VAC, 60 Hz
  • DC current limited
  • 8 foot DC cable furnished
  • Portable
  • Ferro-resonant regulated supply

Specifications

  • Weight:
  • Specification
    62 lb
  • Dimensions:
  • Specification
    13 x 9 x 10 in.
  • Input voltage:
  • Specification
    120VAC
  • AC input amperage:
  • Specification
    35A
  • Input frequency:
  • Specification
    60Hz
  • Output voltage:
  • Specification
    28VDC
  • DC output amperage:
  • Specification
    100A
  • Output wattage:
  • Specification
    2800W

Related Products

Product Codes

  • Mfr Part No
    P-28100ECL
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8504.40
