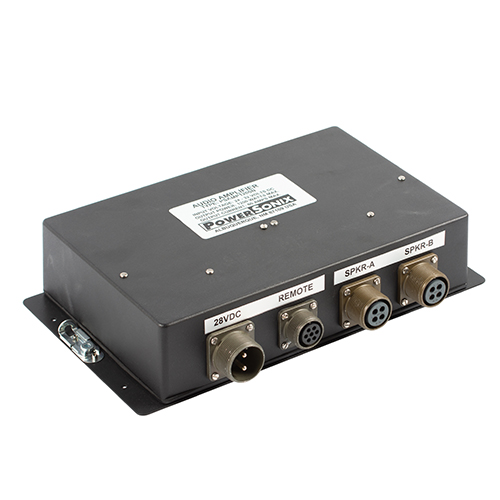

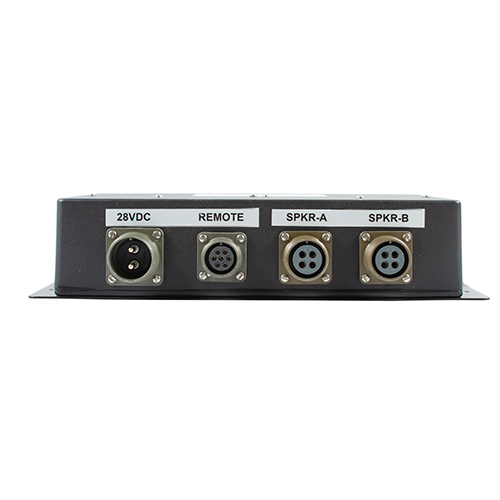

1,200W PA Audio Amplifier

Product Description

This 1.200 watt PA amplifier is designed to operate with airborne PA speakers from Power Sonix in both helicopter and fix-wing aircraft. This amplifier can be installed anywhere in the aircraft.

Specifications

• Weight:
  5.5 lb (2.5 kg)
• Dimensions:
  6.25 x 10.25 x 2.2 in (15.9 cm x 26 cm x 5.59 cm)
• Input Voltage:
  24 — 32 VDC
• Current:
  50 amps rms, max.
• Overload Protection:
  60 amps rms (shutdown)
• Sensitivity:
  1 Vrms @ 1 KHz
• DC-DC Converter:
  5 VDC, output isolated
• Frequency Response:
  400 Hz — 4,500 Hz
• Output Impedance:
  0.05Ω
• Total Harmonic Distortion:
  < 1%
• Gain:
  52 dB
• Efficiency:
  95%
• Temperature:
  -40°F to 122°F (-40°C to 50°C)

Product Codes

• Mfr Part No
  PSAMP1200N
• SCHEDULE B CODE
  8518.40.2000
