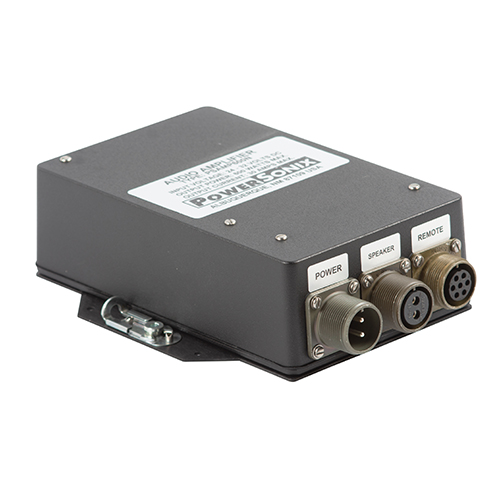

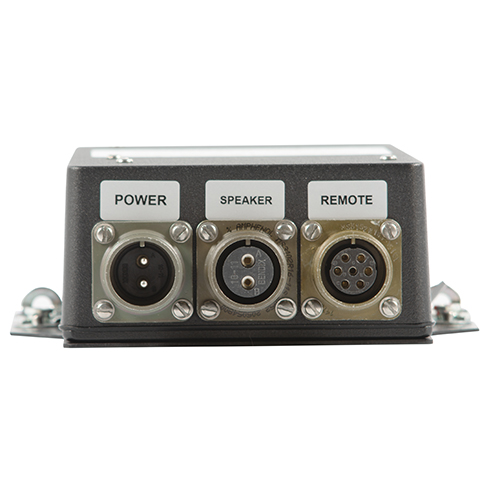

600W PA Audio Amplifier

Product Description

This 600 watt PA amplifier is designed to operate with airborne PA speakers from Power Sonix in both helicopter and fix-wing aircraft. This amplifier can be installed anywhere in the aircraft.

Specifications

• Weight:
  3 lb (1.36 kg)
• Dimensions:
  4.724 x 7.402 x 2.205 in (12 x 18.8 5.6 cm)
• Input Voltage:
  24 — 32 VDC
• Current:
  25 amps rms, max.
• Overload Protection:
  30 amps rms (shutdown)
• Sensitivity:
  1 Vrms @ 1 KHz
• Frequency Response:
  400 Hz — 4,500 Hz
• Output Impedance:
  0.05Ω
• Total Harmonic Distortion:
  < 1%
• Gain:
  52 dB
• Efficiency:
  95%
• Temperature:
  -40°F to 122°F (-40°C to 50°C)

Product Codes

• Mfr Part No
  PSAMP600N
• SCHEDULE B CODE
  8518.40.2000
