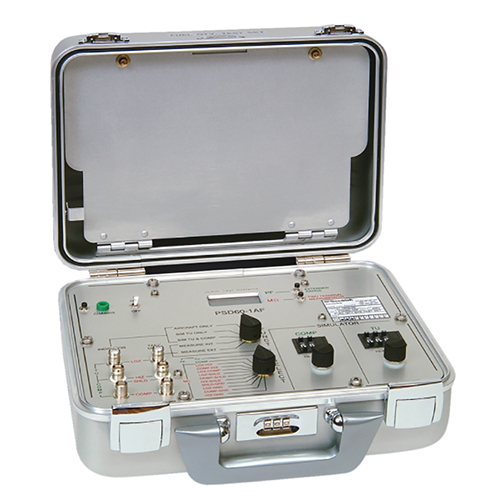

AC Capacitance Fuel Quantity Test Set | Military Version

AC Capacitance Fuel Quantity Test Set | Military Version

VIAVI

EDMO#: PSD60-1AF

MFR#: 699

Call for Pricing

Call us at (800) 235-3300 to purchase.

The PSD60-1AF is designed to calibrate and troubleshoot any AC capacitive fuel, oil or LOX quantity system. This venerable tester is utilized extensively by rotary and fixed wing military aircraft operators around the world. It also measures the capacitance of any AC capacitive fuel, oil or LOX quantity transmitter, or sets of transmitters connected in parallel.
  • Solid-state circuits and LCD display for low power consumption and high reliability
  • Battery-powered for complete portability and ease of maintenance
  • Lightweight aluminum case has hinged compartment in lid for test lead storage
  • Small size permits testing in restricted spaces
  • Push-button "extended range" switch permits readings up to 9,999 pf or 10,000 megohms - over-range indication on LCD
  • Tested and approved for use in any function with fuel in tanks; battery power eliminates need for voltage (safety) checks

Weight:
12 lb (55.44

Dimensions:
12 x 6 x 9 in (30.5 x 15.2 x 22.9 cm)

Measurement Range:
0.1 to 1,999 pf or 1 to 19,999 pf in "extended range"
0.1 to 19,999 megohms (auto-ranging)

Capacitance Simulation Range

Tank Unit:
15 pf to 8,000 pf

Compensator:
15 pf to 1,000 pf

Operating Temperature:
-20°C to 55°C

Non-Operating Temperature:
-51°C to 71°C
