PSD90-1C AC/DC Fuel Capacitance Test Set | F-16, ITAR


VIAVI

Call For Pricing
Available to order
EDMO # PSD90-1C60
MFR Part # 877
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

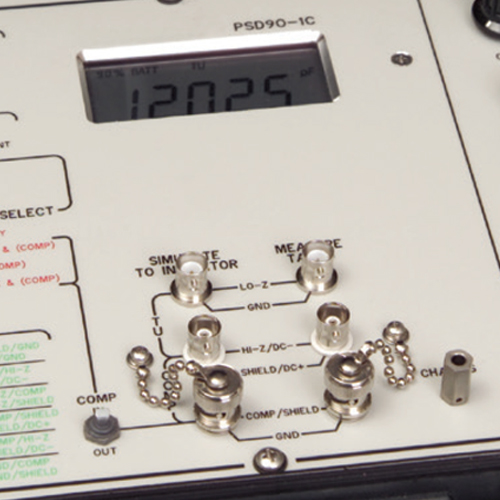

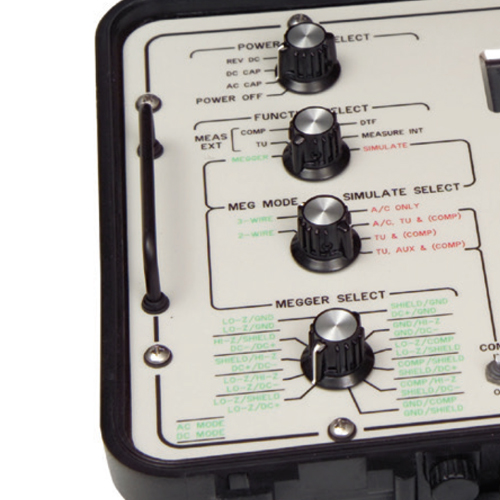

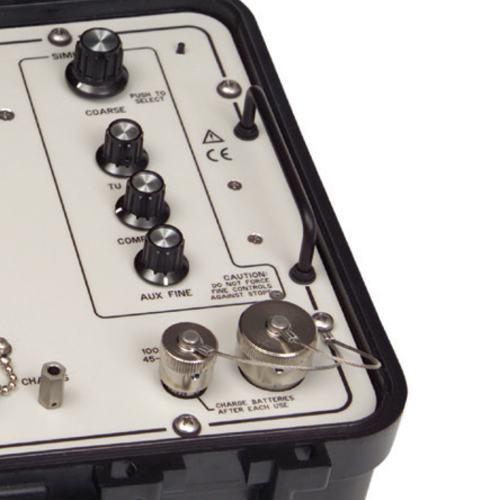

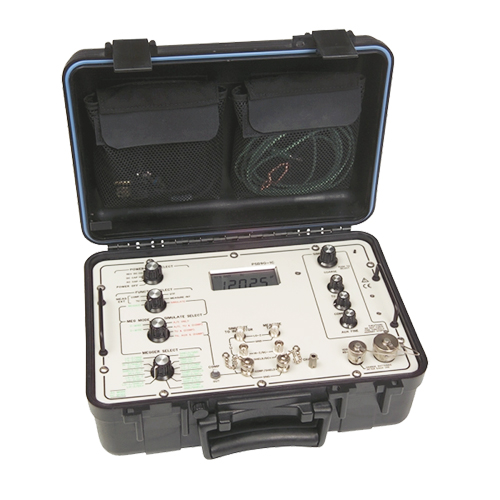

The PSD90-1C Universal AC/DC Capacitance Test Set will test any AC or DC Capacitive Fuel, Water, LOX or Engine Oil Quantity System*. The PSD90-1C has features that allow the user to better troubleshoot and isolate fuel system problems. Rugged in design, the unit can be used anywhere testing and troubleshooting is required. Capable of being operated with external power, the PSD90-1C is ideal for shop or Depot Level repair of fuel system components.

Version (MFR#877) is designed for F-16 fleet.

Features

  • Test Set Includes:
  • 110V Charger, CBL PSD90-1C
  • 230V Charger, CBL PSD90-1C
  • BNCF Rev. Polarity connector
  • BNCM Rev. Polarity connector
  • Ground cable
  • Interface 472844 F-16 Simulator
  • Features:
  • Closed box calibration using front panel controls - performed annually
  • Lightweight/portable
  • Rechargeable battery or externally powered
  • Percent of battery capacity displayed
  • Self-test on power-up
  • Measures DC voltage
  • Manual or auto ranging
  • 2 and 3 wire megger

Specifications

  • Weight:
    13 lb
  • Dimensions:
    10.6 x 14 x 6.5 in (26.9 x 35.6 x 16.5 cm)
  • Power requirements:
    100 - 230 VAC @ 45 - 440 Hz

Related Products

Product Codes

  • Mfr Part No
    877
  • OLD MFG #
    01-1000-60
  • SAP
    877
  • NSN
    4920-01-510-5628
  • SCHEDULE B CODE
    9014208040
  • SIN
    334515
