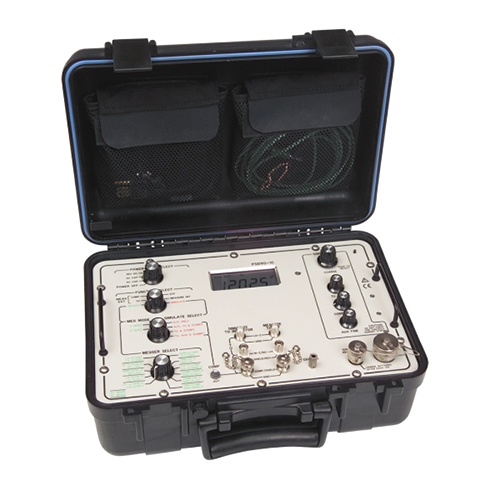

PSD90-1C/61 AC/DC Capacitance Test Set | Universal

PSD90-1C/61 | Universal AC/DC Capacitance Test Set

VIAVI

Call For Pricing
Available to order
EDMO # PSD90-1C61
MFR Part # 878
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

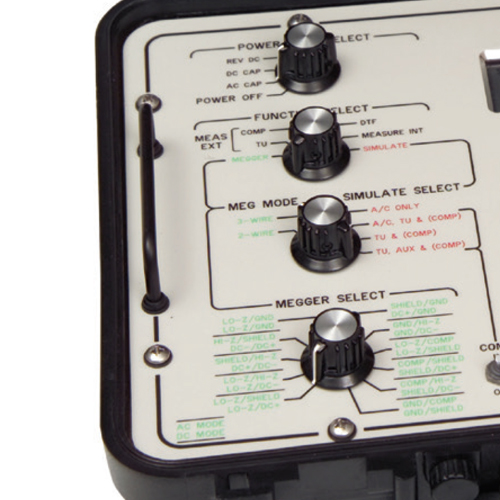

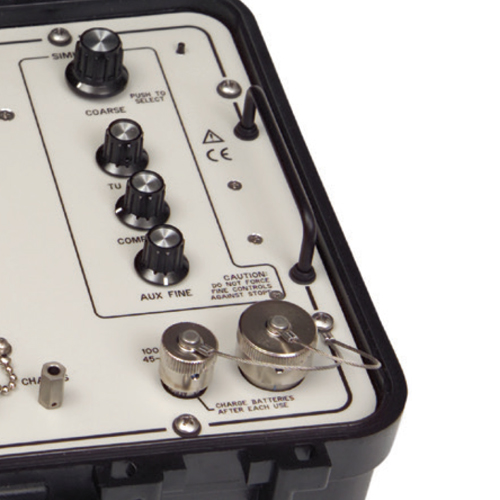

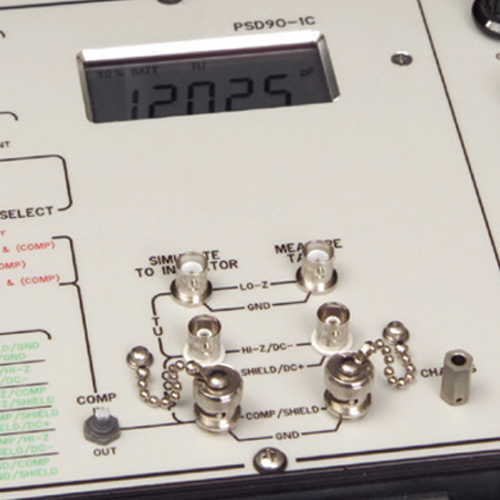

The PSD90-1C61 Universal AC/DC capacitance tester checks out and calibrates AC or DC fuel gauging systems, both on or off of an aircraft. This test set can simulate capacitance values for the operation of indicators and it also measures the insulation resistance of tank units and cabling. Virtually automatic operation no manual nulling is required. Includes four modes: manual Megger/DC cap ranging, low voltage/low current mode, REV DC (DC+) mode, and distance-to-fault (DTF) mode.

Version (MFR#878) is designed for universal non-F-16 fleet.

Features

  • Test Set Includes:
  • 110V Charger, CBL PSD90-1C
  • 230V Charger, CBL PSD90-1C
  • BNCF Rev. Polarity connector
  • BNCM Rev. Polarity connector
  • Ground cable
  • Features:
  • Easy to operate/calibrate
  • Annual calibration
  • Lightweight / portable
  • Rechargeable battery or externally powered
  • Percent of battery capacity displayed
  • Self-test on power-up
  • Measures DC voltage
  • Manual or Auto Ranging
  • 2 and 3 Wire Megger
  • Compliant with Boeing Spec 10-61959 Rev H
  • MIL-STD-810 Method 511.4 certified
  • Traceable to NIST

Specifications

  • Weight:
    13 lb
  • Dimensions:
    10.6 x 14. x 6.5 in.
  • Input power:
    100 - 230 VAC @ 45 - 440 Hz
  • Battery:
    1 Rechargeable 12 VDC Sealed Lead Acid
  • Operation:
    12 hours continuous at 25°C
  • Charge time:
    8 hours max
  • Range:
    0.000 pF to 39.99 KpF
  • Operating temperature:
    -40°C - +55°C
  • Altitude:
    15,000 ft (4600 m) maximum

Related Products

Product Codes

  • Mfr Part No
    878
  • OLD MFG #
    01-1000-61
  • SAP
    878
  • ECCN
    7B994
  • NSN
    4920-01-528-2230
  • SCHEDULE B CODE
    9014208040
  • SIN
    334515
