1000Base-T DataMaster Q100 Cable | 24(19) SPCA Conductor

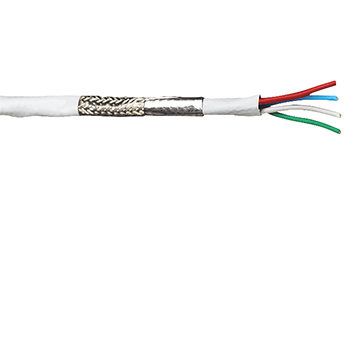

24GA/100 BASE-T SHIELDED QUAD ETHERNET CABLE/Q100-24(19)-TT-F

HARBOUR INDUSTRIES

Call For Pricing

Available to order

EDMO # Q10024016

MFR Part # Q100-24(19)-TT-F

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

DataMaster® Q100 series cable from has a four-connector "Quadrax" design offering 1000 Base-T ethernet support and Cat 5e performance. These lightweight and small cables are designed specifically for high speed airborne data applications. The lightweight Q100 Data Quad cables are ideal in many aircraft systems where thousands of feet are needed such as in-flight entertainment systems.

Features

Stable electrical performance supporting 1000 base T Ethernet Cat5e performance
Lightweight and small size for high speed data applications
Silver plated copper and copper alloy conductors with tin or silver plated copper braids
Non-shrinkback insulation terminates easily and fits standard connectors
1000 Base T Cat 5e performance
100 Ohm and 150 Ohm impedances are standard and temperature rated at 150°C and 200°C
Four conductor quadrax design
Proprietary fluropolymer insulation
Fluropolymer tape binder
Flat TPC inner braid and round wire TPC outer braid
SPC and other shield configurations available
FEP jacket (laser markable ETFE and PFA available)
Supports Gigabit Ethernet, FDDI, USB, and 1397 standards

Specifications

Weight (lb/mft):

22 lb/mft
Conductor:

24(19) SPCA
Overall Diameter:

0.161 in
Capacitance (pF/ft):

13.0
Operating Temperatures:

-55°C to 150°C
Jackets:

FEP (laser markable ETFE and PFA available)
Specification

All Cables Comply with RoHS and REACH Directives
Specification

Cables pass FAR 25.853, Airbus ABD0031, and Boeing Smoke & Toxicity Requirements
