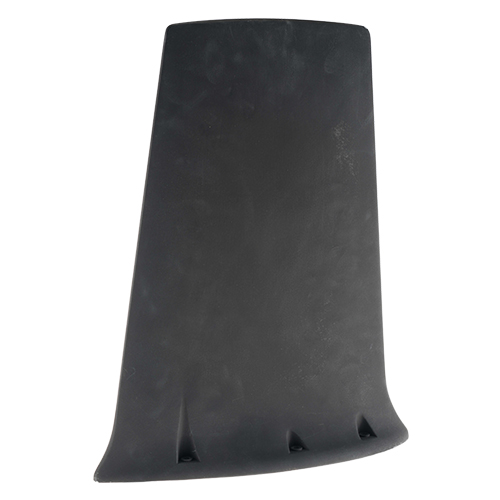

RAV30512B UHF Broadband Antenna | 30–512 MHz, Black

RAV30512B UHF Broadband Antenna | 30–512 MHz, Black

RAMI

Call For Pricing
Available to order
EDMO # RAV30512B
MFR Part # RAV30512B
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The RAV30512 is a broadband airborne communications antenna designed for air speeds less than Mach 1. The antenna housing is a fiberglass epoxy design to withstand the exposure to sand and dust particles of desert areas. The antenna is foam filled to reduce the effects of extreme temperature changes, extreme humidity and excessive shock and vibration. It is mechanically and environmentally qualified to MIL-A-55680 (AT-1108) and has continuous operation altitudes of up to 50,000 feet and temperatures between -65º F and 131º F. It can also withstand the impact shock of 30g and the steady-state acceleration of 6g. This antenna has the same mounting pattern and footprint as the AT-1108/ARC for easy interchangeability if needed. A conductive mounting gasket is supplied with this product.

This RAV30512 Broadband Antenna (EDMO# RAV30512B) comes in black.

Features

  • Fiberglass epoxy housing to withstand sand and dust exposure.
  • Foam-filled for temperature, humidity, and vibration resilience.
  • Qualified to MIL-A-55680 standards, designed for operation up to 50,000 feet.
  • Impact shock resistance up to 30g, with 6g steady-state acceleration tolerance.
  • Easy interchangeability with AT-1108/ARC mounting pattern and footprint.

Specifications

  • Weight:
    3.5 lbs
  • Frequency:
    30-512 MHz
  • Impedance:
    50 Ω Nominal
  • Gain:
    -20 dBi @ 30 MHz to 0 dBi @ 300 MHz
  • VSWR:
    3.5:1 Maximum
  • Polarization:
    Vertical
  • Pattern:
    Omni-Directional
  • Connector:
    TNC Female
  • Color:
    Black

Related Products

Product Codes

  • Mfr Part No
    RAV30512B
  • SCHEDULE B CODE
    8529109000
