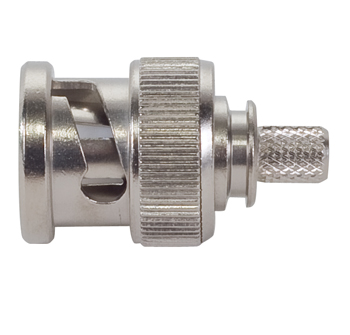

Straight BNC Male Connector Plug

Straight BNC Male Connector Plug

TE CONNECTIVITY

Call For Pricing
Available to order
EDMO # RBD50-S-00
MFR Part # RBD-50-S-00
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Part RBD50-S-00 is a straight, BNC male connector for use with RG 174, RG 178, RG 188, RG 196, RG 316 coaxial cable.

Features

  • 50 ohms
  • Gold-plated, brass center contact
  • PTFE dielectric material

Specifications

  • Conduct O.D.: 0.64 mm (0.025 in) Dielectric O.D.: 1.55 mm (0.06 in)
  • Applies To: coaxial cable
  • Sealed: no
  • RF Connection Type: BNC
  • Connector Style: plug
  • Cable Type: RG 174, RG 178, RG 188, RG 196, RG 316
  • Dielectric Material: PTFE
  • ESD Protection: without
  • Isolated Ground: no
  • Grade: military
  • Product Type: RF connector
  • Solder Terminal: with
  • Impedance: 50Ω
  • Body Features: material: brass plating: nickel style: straight insolation: without shield O.D.: 0.9 - 3 mm (0.035 -0.118 in) minimum
  • Center Contact Features: material: brass plating: gold
  • Cable Termination Type: solder

Related Products

Product Codes

  • Mfr Part No
    RBD-50-S-00
  • ECCN
    EAR99
  • SCHEDULE B CODE
    8536.90.4000
