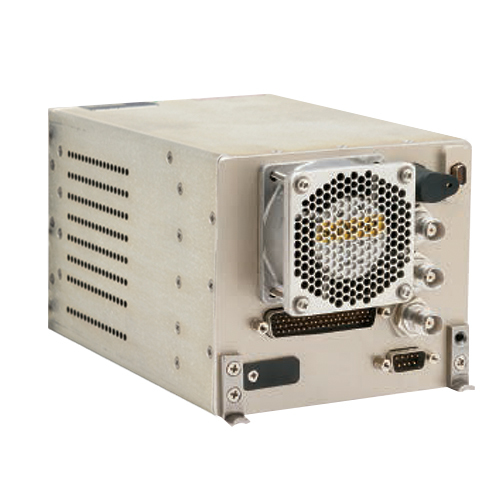

RT-7000 Remote Mount Tactical Radio | 3 APX cards, Slot 1: APX, Slot 2: VHF, UHF; APX, Slot 3 VHF, UHF, 700/800 MHz, P25 Phase 1 & 2 Trunking, Multi-Key AES/DES/DES-XL/DES-OFB
CANYON AEROCONNECT
EDMO#: RT7R7172
MFR#: RT7000RMR-007-001-0007-0002
Description
The RT-7000 Remote Mount Tactical Radio (RMR) is an LRU that is designed for rack mounted installations in fixed wing aircraft and helicopters and will satisfy all public safety and para-public voice communications needs. The RT-7000 provides P-25 Phase 1 and 2 digital modulation across the entire range. With the addition of up to two modules, it can also cover VHF, UHF, and 700/800 MHz public safety bands including trunking and Motorola-proprietary radio network features.
As a software-defined device, the RT-7000 can be easily be upgraded to meet evolving requirements for software and hardware without replacing the radio. The Remote-Mount Radio can be controlled by a PMR, RCDU, or MCDU with an interface control document available for selected MCDU's.
This RT-7000 Remote Mount Radio (EDMO# RT7R7172) includes 3 APX cards Slot 1: APX Slot 2: VHF, UHF; APX Slot 3: VHF, UHF, 700/800 MHz, P25 Phase 1 & 2 Trunking, Multi-Key AES/DES/DES-XL/DES-OFB
Features
- Remote mount radio unit is designed for remote installation and controlled by a PMR, RCDU, or MCDU
- Each LRU accommodates up to three transceivers: Motorola APX 8000, Wideband, and search & rescue
- Connectivity for up to two handheld devices
- Designed for maximum interoperability and upgradability
- Supports 29.7 MHz to 960 MHz communications with three embedded and individual channels,
- ATC communications, P-25 Phase 1 & 2 digital modulation, trunking, SmartZone, and SmartNet
- Flight tunable — including P-25 frequency and NAC data
- Programmable preset channels (up to 1000)
- Programmable scan patterns
- Embedded simulcast and relay operations
- TSO/ETSO for Comm and display
- Multikey FIPS-140-2 encryption
Specifications
Weight:
<10 lb, single RMR
<20 lb, double RMR
Dimensions:
4.38 x 8.24 x 5 in, single RMR
4.38 x 16.48 x 5 in , double RMR
Tunability:
1.25 kHz incremental tuning
Mode:
FM/AM/P25/Trunking
Wideband Transceiver Frequency Bands:
30 MHz – 50 MHz, Mobile Radio
50 MHz – 88 MHz, Military
88 MHz – 117.999 MHz, FM Broadcast
108 MHz – 118 MHz, VOR Voice
118 MHz – 154 MHz, ATC and Civil Air Patrol
136 MHz – 173.999 MHz, Mobile Radio
156 MHz – 174 MHz, Maritime Radio
225 MHz – 400 MHz, Military
380 MHz – 959.999 MHz, Mobile Radio
APX-8000 Modula Bands:
136 MHz – 174 MHz, P25 VHF FM
380 MHz – 520 MHz, P25 UHF FM
764 MHz – 870 MHz, P25 700/800
Channeling:
6.25/8.33/12.5/25.0 kHz
Search and Rescue Module Frequencies:
121.5 MHz, AM (Civil Aircraft Emergency)
243.0 MHz, AM (Military Aircraft Emergency)
156.8 MHz, FM (Marine Voice Emergency)
156.525 MHz, FSK (Marine Digital Emergency)
Temperature:
-40°C to 55°C
Altitude:
55,000 ft
Power Requirements:
27.5 ±0.5 VDC, nominal input voltage
18 VDC to 33 VDC, voltage range
10 amps (max), current TX (nominal)
4 amps (typical), RX (idle)
Transmit Power:
ATC COMS — 4W (min)
AM — 4W (min)
FM — 10W
P25 Conventional — 10W
Motorola modules: VHF – 5W, UHF – 5W, 100/800 MHz – 3W
APCO P25:
All P25 Bands: Conventional common air interface CAI, Phase I & II Trunking, Analog Trunking (SmartZone, SmartNet)
Encryption:
FIPS 140-2, Level 2/3
P25 AES & DES
Analog DES, DES-XL, DVP
P25 OTAR
Multikey
Certification:
DO-160G/EUROCAE/ED14 test rated FCC Part 15, 22, 80, 87, 90
EU (RED) Certification – Future
Level C EUROCAE ED-12B
RTCA DO-178C/EUROCAE/ED12*
RTCA DO-254/EUROCAE/ED80*
FAA TSO-C169a*
EASA ETSO-2C169a*
FAA STC/PMA – Future
FCC Grant Approval – Certified to parts 15, 22, 80, 87, and 90
Industry Canada (IC) Certified
Anatel Brazil Certification – Pending
*TSO Certification Pending
Product Codes
Mfr Part No :
RT7000RMR-007-001-0007-0002
