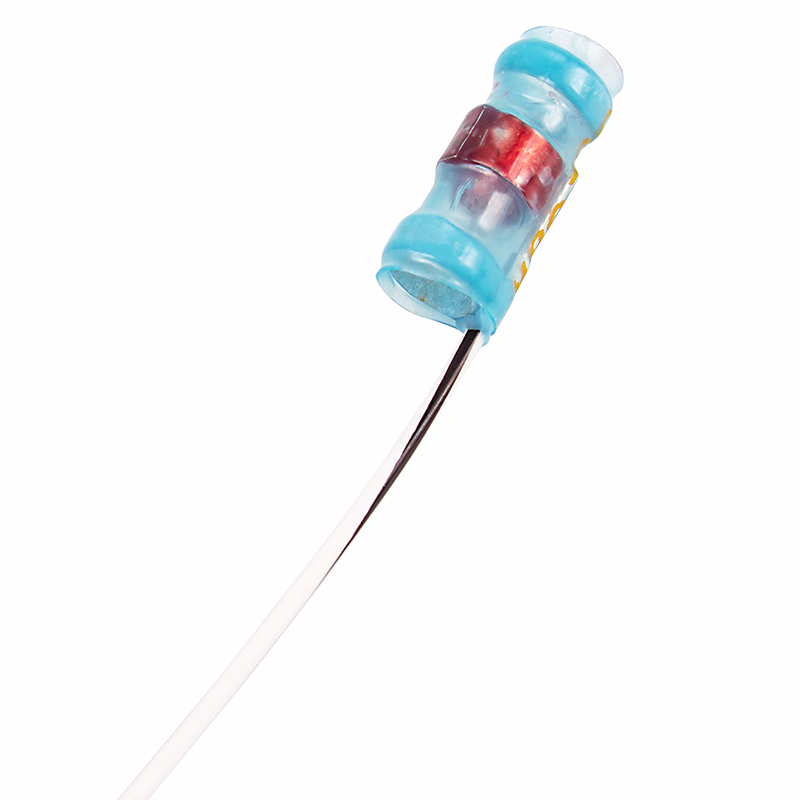

Solder Sleeve Shield Terminator | 0.145 Expanded I/D, 0.03 Recovered I/D, 20 AWG Wire Size

Product Description

The M83519 (S01 and S02) series terminators contain a colored thermochromic temperature indicator that exhibits a distinct color change when surfaces have reached wetting temperature. This color change gives both manufacturing and Quality Control an aid in the inspection of the completed termination. This Solder Sleeve Shield Terminator is an immersion resistant terminator that meets MIL-Spec M83519/2-2. Ideal for use in shield to ground termination applications.

Specifications

• Product Length:
  0.65 in (16.5 mm)
• Compatible Jacket Diameter Range:
  0.104 in (2.65 mm)
• Expanded I/D:
  0.145 in (3.68 mm)
• Recovered I/D:
  0.03 in (0.76 mm)
• Wire Size:
  20 AWG ( 0.5 mm 2 )
• Shield O/D:
  0.055 in (1.4 mm)
• Temperature Indicator Type:
  Thermochromic
• Pre-Installed Lead:
  No
• Operating Temperature:
  150°C (max)
• Resistance Properties:
  Immersion Protection
• Wire Temperature:
  125°C (max)
• Government Qualified:
  No
• MIL/NAS Specification (MIL-S-83519, NAS-1747):
  M83519/1

Product Codes

• Mfr Part No
  646506-000
• SCHEDULE B CODE
  8536.90.4000
