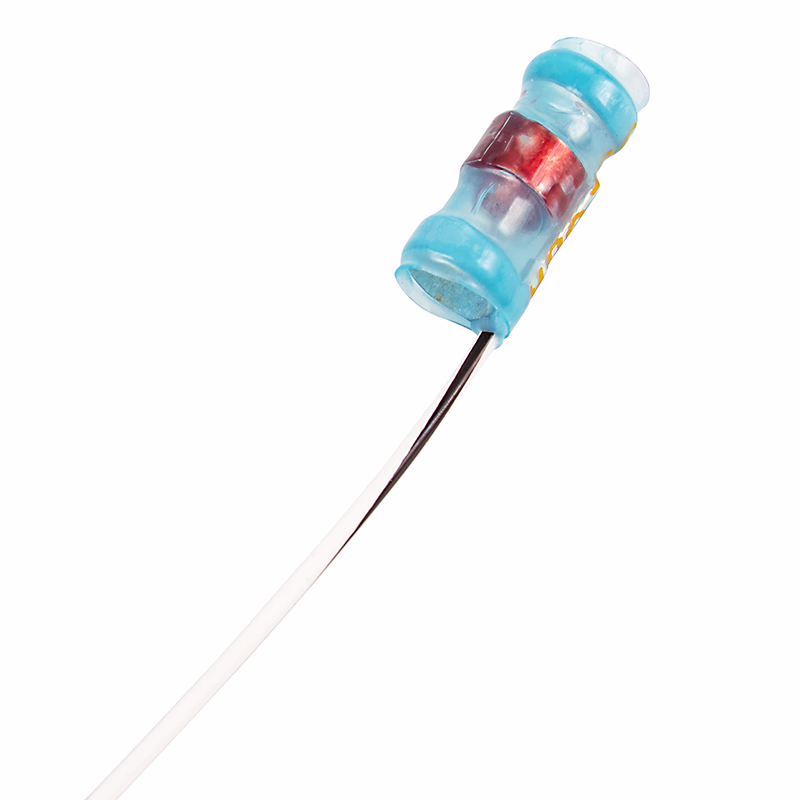

Solder Sleeve Shield Terminator | 0.2 Expanded I/D, 0.05 Recovered I/D, 22 AWG Wire Size

Solder Sleeve Shield Terminator | 0.2 Expanded I/D, 0.05 Recovered I/D, 22 AWG Wire Size

RAYCHEM

Call For Pricing
Available to order
EDMO # S02-10-R
MFR Part # 669507-000
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The M83519 (S01 and S02) series terminators contain a colored thermochromic temperature indicator that exhibits a distinct color change when surfaces have reached wetting temperature. This color change gives both manufacturing and Quality Control an aid in the inspection of the completed termination. This Solder Sleeve Shield Terminator is an immersion resistant terminator that meets MIL-Spec M83519/2-8. Ideal for use in shield to ground termination applications.



Features

  • Transparent insulation sleeve provides encapsulation, inspectability, strain relief, and insulation
  • Prefluxed solder preform provides a controlled soldering process
  • One-piece design offers easy installation and lower installed cost
  • Optional preinstalled ground leads provide convenience

Specifications

  • Product Length:
    0.75 in (19.1 mm)
  • Compatible Jacket Diameter Range:
    0.34 in (8.6 mm)
  • Expanded I/D:
    0.3 in (7.62 mm)
  • Recovered I/D:
    0.1 in (2.54 mm)
  • Wire Size:
    22 AWG (0.34 mm 2 )
  • Shield O/D:
    0.17 in (4.3 mm)
  • Temperature Indicator Type:
    Thermochromic
  • Pre-Installed Lead:
    No
  • Operating Temperature:
    150°C (max)
  • Resistance Properties:
    Immersion Protection
  • Wire Temperature:
    125°C (max)
  • Government Qualified:
    No
  • MIL/NAS Specification (MIL-S-83519, NAS-1747):
    M83519/1

Related Products

Product Codes

  • Mfr Part No
    669507-000
  • SCHEDULE B CODE
    8536904000
