Solder Sleeve Shield Terminator | 0.3 Expanded I/D, 0.17 Recovered I/D, Pre-Installed Lead, Splash Protection

Product Description

The S03 series terminators contain a colored thermochromic temperature indicator that exhibits a distinct color change when surfaces have reached wetting temperature. This color change gives both Manufacturing and Quality Control an aid in the inspection of the completed termination. Ideal for use in shield to ground termination applications.

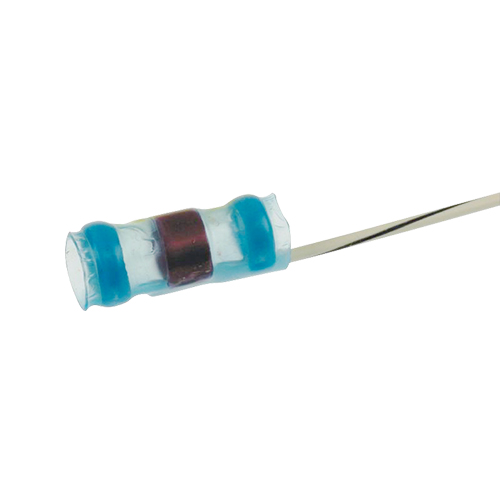

This Solder Sleeve Shield Terminator (EDMO# S03-05-R) is a splash resistant terminator that meets MIL-Spec M83519/3-05. It has a 0.3-inch expanded inner diameter, 0.17-inch recovered inner diameter, and has a preinstalled lead.

Specifications

• Product Length:
  0.75 in (19.1 mm)
• Compatible Jacket Diameter Range:
  0.3 in (7.62 mm)
• Expanded I/D:
  0.3 in (7.62 mm)
• Recovered I/D:
  0.17 in (4.32 mm)
• Shield O/D:
  0.17 in (4.32 mm)
• Temperature Indicator Type:
  Thermochromic
• Pre-Installed Lead Type:
  Braid Strap 640
• Operating Temperature:
  150°C (max)
• Resistance Properties:
  Splash Protection
• Wire Temperature:
  125°C (max)
• Government Qualified:
  No
• MIL/NAS Specification (MIL-S-83519, NAS-1747):
  M83519/3-05
